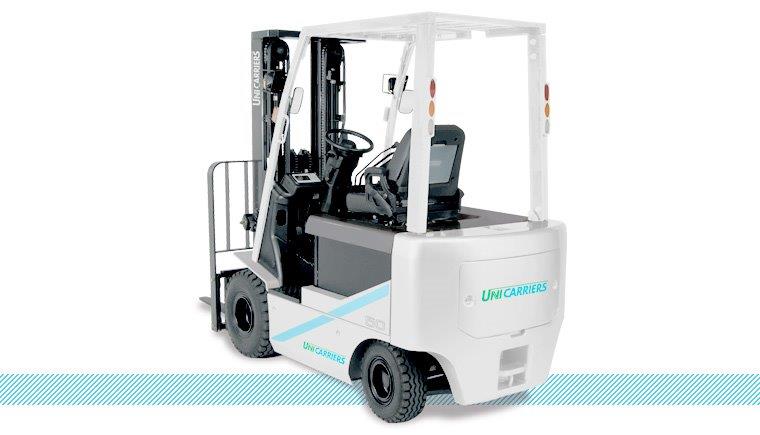

UniCarriers BXC30N–BXC80N Electric Cushion Tire Forklifts

Built for Performance and Efficiency

The UniCarriers BXC Series electric cushion tire forklifts are designed to deliver exceptional power efficiency and performance. With capacities ranging from 3,000 to 8,000 lbs, these forklifts are ideal for demanding applications in manufacturing, warehousing, and distribution.

Key Features

• Versatility and Value: Combines high performance with an advanced feature package, including self-contained onboard diagnostics and controlled rollback.

• Minimized Preventable Repairs: Easy access to hydraulic and brake fluids encourages regular inspections, reducing downtime.

• Simplified Battery Maintenance: Gas stay assist keeps the hood open nearly 90°, making routine battery maintenance and change-outs faster.

• Fewer Motors to Maintain: 100% AC-powered system with brushless drive and pump motors, and a single contactor.

• Operator Comfort: Lumbar support and weight adjustments create customized comfort, while a non-cinching seatbelt allows a wider range of movement.​

Model Variants

1. BXC30N

   • Load Capacity: 3,000 lbs

   • Power: 36V / 48V

   • Tire Type: Cushion

   • Operator Position: Sit Down​

2. BXC35N

   • Load Capacity: 3,500 lbs

   • Power: 36V / 48V

   • Tire Type: Cushion

   • Operator Position: Sit Down​

3. BXC40N/R

   • Load Capacity: 4,000 lbs

   • Power: 36V / 48V

   • Tire Type: Cushion

   • Operator Position: Sit Down​

4. BXC50N/R/LN

   • Load Capacity: 5,000 lbs

   • Power: 36V / 48V

   • Tire Type: Cushion

   • Operator Position: Sit Down​

5. BXC60N

   • Load Capacity: 6,000 lbs

   • Power: 36V / 48V

   • Tire Type: Cushion

   • Operator Position: Sit Down​

6. BXC65N

   • Load Capacity: 6,500 lbs

   • Power: 36V / 48V

   • Tire Type: Cushion

   • Operator Position: Sit Down​

7. BXC80N

   • Load Capacity: 8,000 lbs

   • Power: 36V / 48V

   • Tire Type: Cushion

   • Operator Position: Sit Down​

Options and Accessories

• Battery Options: 36V or 48V configurations to suit various operational needs.

• Onboard Diagnostics: Self-contained system for easy troubleshooting and maintenance.

• Ergonomic Enhancements: Adjustable seating and non-cinching seatbelts for operator comfort.

• Safety Features: Controlled rollback and advanced stability systems for secure operation.

• Maintenance Accessibility: Gas stay assist for easy hood opening and battery access.
