Agile Power for Tight Spaces

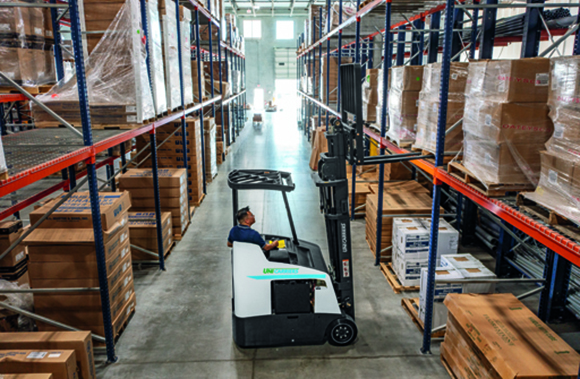

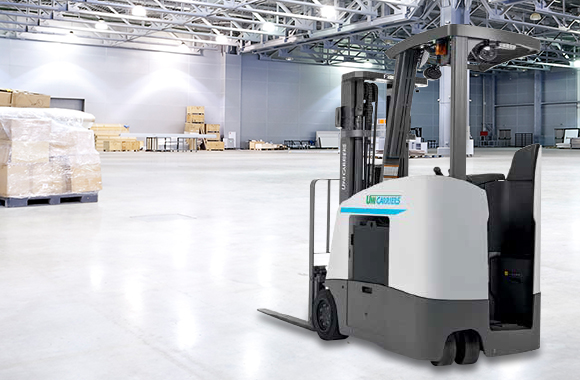

The UniCarriers SCX N2 Series stand-up counterbalanced forklifts are engineered for operations requiring frequent on-and-off access and precise maneuverability. With capacities ranging from 3,000 to 4,000 lbs, these 36V AC-powered trucks deliver exceptional performance in confined warehouse environments.
Key Features
-
Compact Maneuverability: Dual AC motors and a tight turning radius allow the SCX N2 to navigate narrow aisles with ease.
-
Customizable Performance Modes: Three factory-set modes enable operators to tailor performance to specific tasks and environments.
-

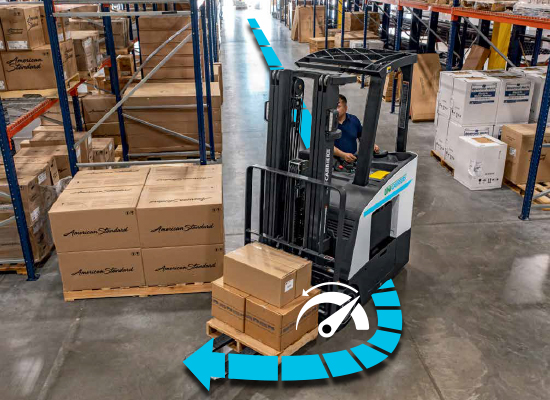

Intelligent Curve Control: Automatically adjusts speed during cornering for enhanced stability and safety.
-
Ramp Hold: Prevents unintended movement on slopes when the travel control is in neutral.
-
Operator Presence System: Dual pedals ensure the truck operates only when the operator is correctly positioned.
-
Automatic Steer Centering: Returns the drive tire to the forward position upon startup or shutdown, reducing potential hazards.
-
Ergonomic Design: Features a low 9.4″ step height, wide entry, and a spring-loaded, dampened floorboard for reduced operator fatigue.
-
Adjustable Controls: Electronically adjustable armrest and backrest accommodate operators of varying sizes.
-
Enhanced Visibility: Side stance position and open-view mast design provide excellent all-around visibility.
Model Variants
-
SCX30N2
-
Load Capacity: 3,000 lbs
-
Power: 36V AC
-
Chassis Width: 41″
-
Overall Length: 63″
-
Gross Weight: 8,424 lbs
-
-
SCX35N2
-
Load Capacity: 3,500 lbs
-
Power: 36V AC
-
Chassis Width: 41″
-
Overall Length: 65″
-
Gross Weight: 8,424 lbs
-
-
SCX40N2
-
Load Capacity: 4,000 lbs
-
Power: 36V AC
-
Chassis Width: 41″
-
Overall Length: 70″
-
Gross Weight: 9,244 lbs
-
Options and Accessories
-
Lighting Packages: Includes overhead lights, blue spotlights, and more for enhanced visibility.
-
Battery Gate Interlock Switch: Prevents truck operation if battery gates are improperly installed.
-
Side Shifter: Available in integral or hang-on designs for improved load handling efficiency.
-
Telematics Integration: Supports third-party systems for fleet management and diagnostics.
-
Lower Overhead Guard: Optional low-profile guard for height-restricted areas.
-
Freezer Package: Ensures reliable performance in cold storage environments.
-
In-Cab Accessories: Options include USB ports, operator fan, and mirror for enhanced comfort and convenience.
Warranty
UniCarriers backs the SCX N2 Series with a 2-year unlimited hour warranty, reflecting their commitment to durability and customer satisfaction.
