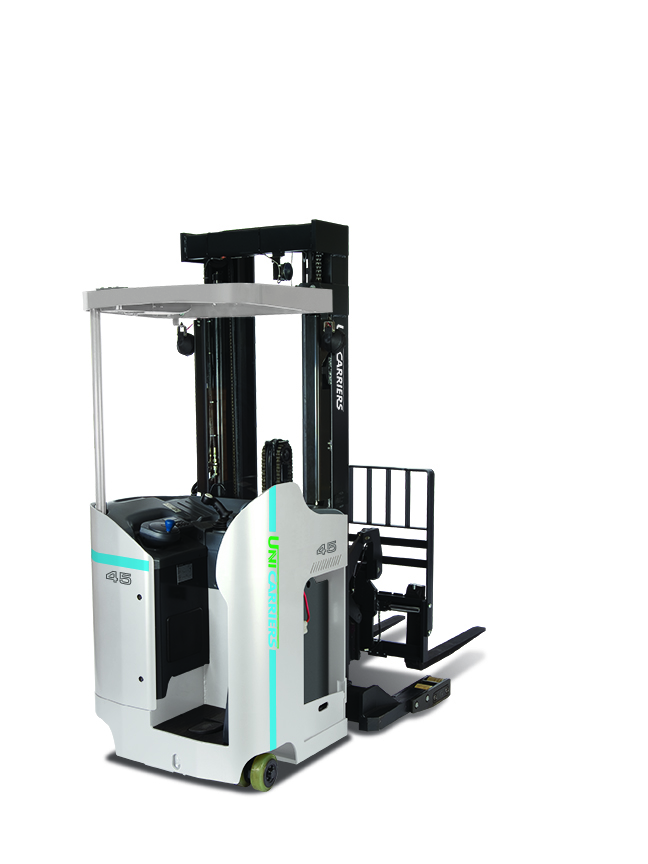

UniCarriers SRX35–SRX45 Pantograph Reach Trucks

Precision Handling in Narrow Aisles

The UniCarriers SRX Series reach trucks are engineered for operations where space is at a premium. With single reach capacities ranging from 3,500 to 4,500 lbs and double reach capacity up to 3,000 lbs, these 36V AC-powered trucks deliver exceptional maneuverability and customizable performance settings. The rugged design ensures greater uptime, intuitive operation, and easy maintenance, making them ideal for high-density warehousing environments.

Key Features

• Advanced AC Technology: Brushless AC-powered drive and hydraulic pump motors with a single contactor design reduce maintenance and operating costs.

• Electronic Steering: On-demand electronic power steering with tiller control provides precise maneuverability in tight spaces.

• High-Visibility Mast: Rigid mast construction with interlocking I-beam rails and six heavy-duty rollers ensures stability and clear visibility for the operator.

• Operator Comfort: Features like a 90° side stance, low step height, anti-fatigue padding, and adjustable backrest enhance operator comfort and reduce fatigue.

• Integrated Diagnostics: The LED meter panel provides real-time access to system status, fault codes, and service history, minimizing downtime.

Model Variants

1. SRX35N

   • Load Capacity: 3,500 lbs

   • Power: 36V AC

   • Reach Type: Single Reach

   • Chassis Width: 43 in

   • Overall Length: 61.9 in

   • Gross Weight: 6,715 lbs​

2. SRX45N

   • Load Capacity: 4,500 lbs

   • Power: 36V AC

   • Reach Type: Single Reach

   • Chassis Width: 43 in

   • Overall Length: 55.0 in

   • Gross Weight: 6,420 lbs​L

3. SRX30ND

   • Load Capacity: 3,000 lbs

   • Power: 36V AC

   • Reach Type: Double Reach

   • Chassis Width: 43 in

   • Overall Length: 61.9 in

   • Gross Weight: 6,715 lbs​

Options and Accessories

• Performance Modes: Adjustable settings to tailor performance to specific tasks and operator preferences.

• Cold Storage Conditioning: Components designed to operate efficiently in freezer environments without additional heating elements.

• Side Shifter: Available for enhanced load positioning and handling flexibility.

• Telematics Integration: Supports fleet management and diagnostics through third-party systems.​

Warranty

UniCarriers backs the SRX Series with a comprehensive warranty, reflecting their commitment to durability and customer satisfaction.​
