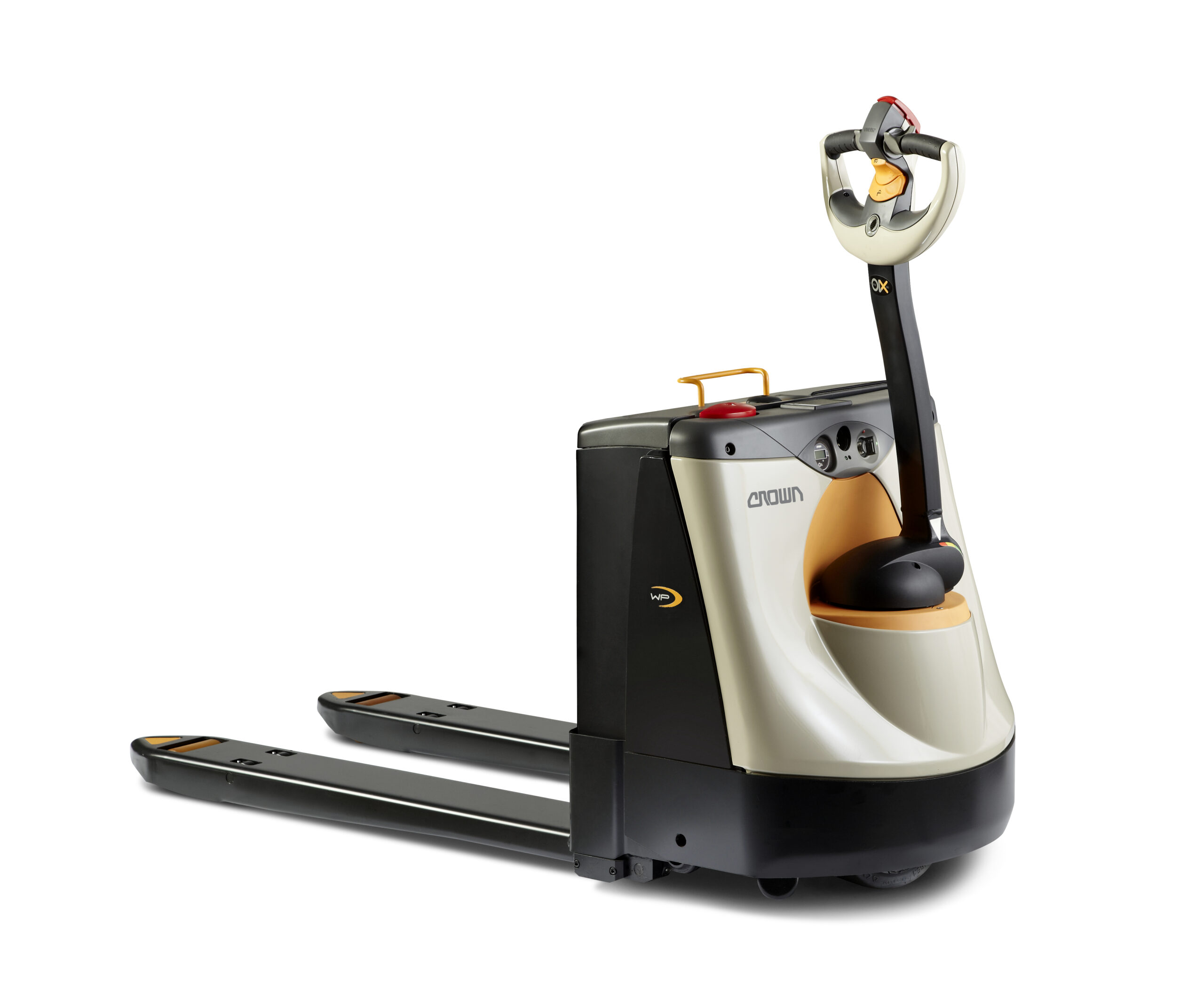

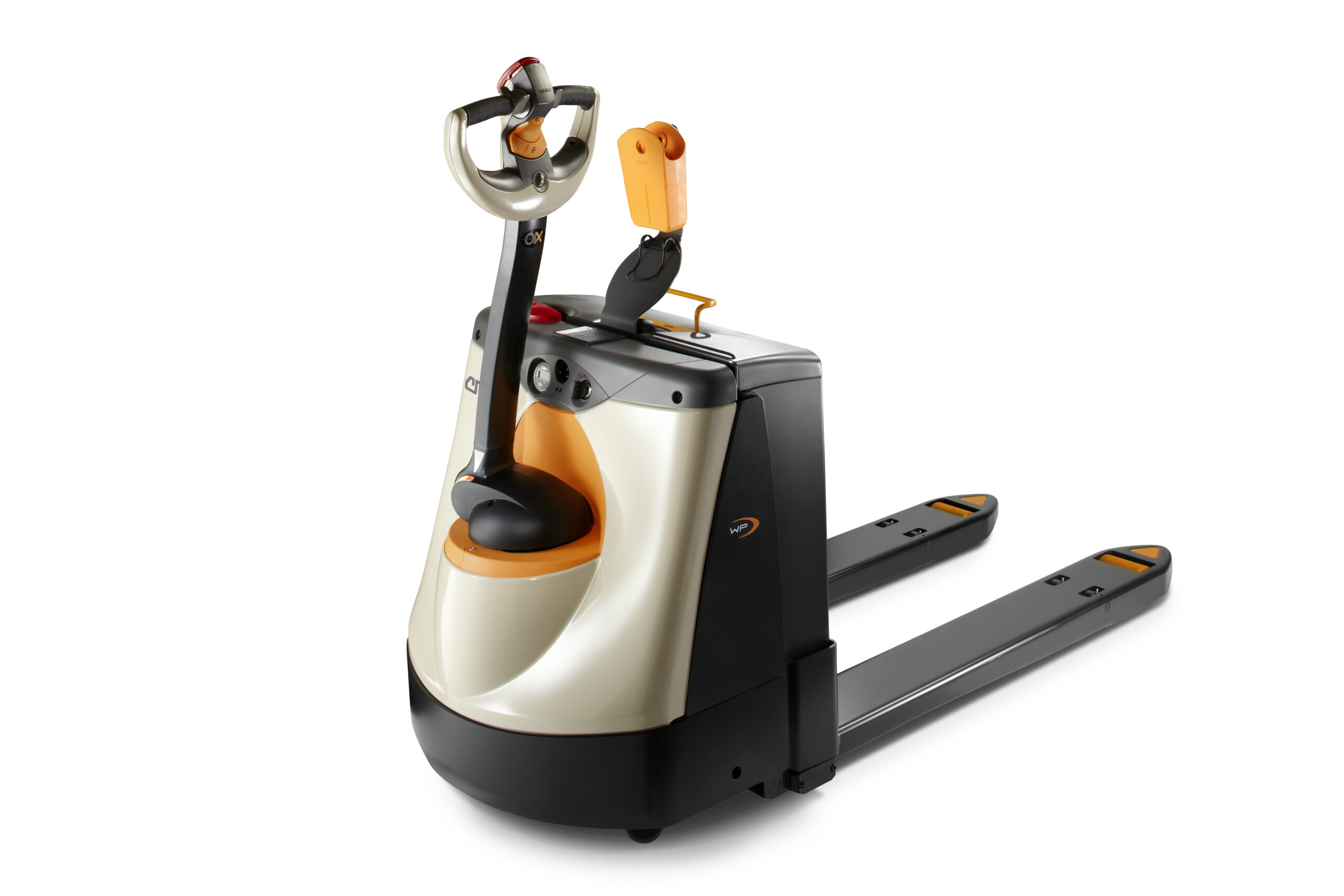

Crown WP Series Electric Pallet Trucks

Built for Survival

The Crown WP Series electric pallet trucks are engineered to endure the rigors of daily warehouse operations. With robust construction and advanced features, these trucks deliver reliable performance in demanding environments.​

Key Features

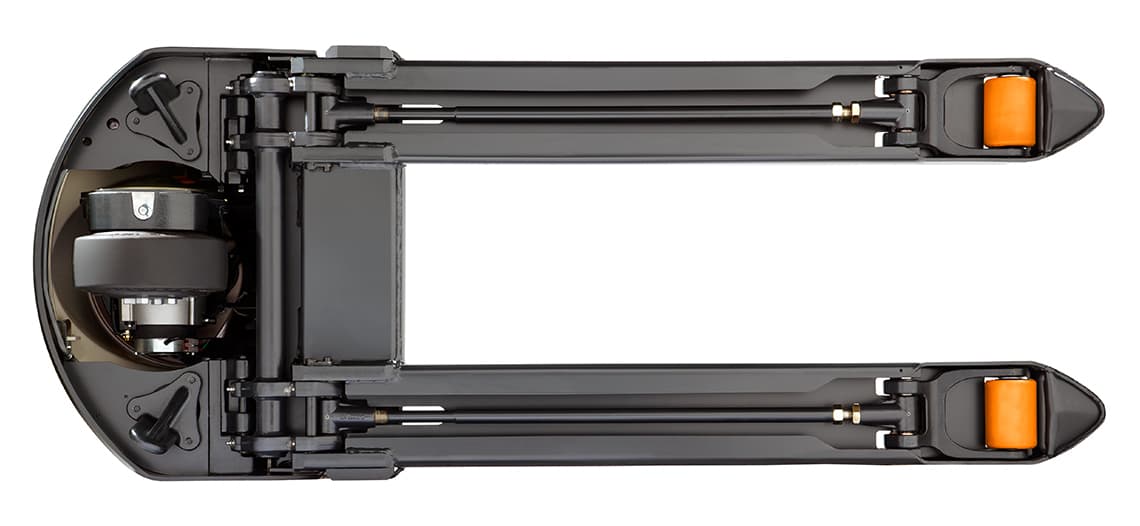

• Heavy-Duty Construction: Features a reinforced steel chassis and fork assembly designed to withstand constant impacts and harsh conditions.

• Advanced Stability System: Dual lift cylinders paired with a heavy-duty torsion bar ensure stability when handling offset or tall loads over uneven surfaces.

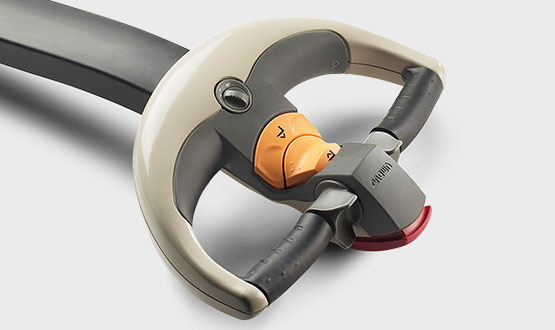

• X10® Control Handle: Ergonomically designed handle with contactless sensors provides precise control and durability, even in temperature-controlled environments.

• Compact Maneuverability: Short head length enhances maneuverability in tight spaces and on lift gates.

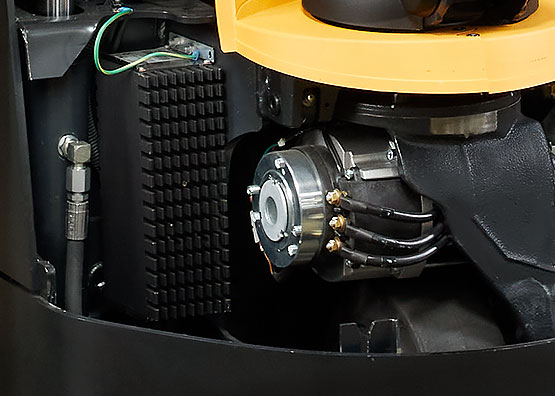

• AC Traction System: Delivers responsive acceleration and smooth direction changes for efficient load handling.

Model Variants

1. WP 3010 Compact Pallet Truck

   • Load Capacity: 3,500 lb (1,600 kg)

   • Power: 24 V / 74–150 Ah

   • Fork Lengths: 32″ to 54″ (800 mm to 1,400 mm)

   • Width Overall: 28.3″ (720 mm)

   • Head Length: 19.7″ (500 mm)​

2. WP 3200 Heavy-Duty Pallet Truck

   • Load Capacity: 4,500 lb (2,000 kg)

   • Power: 24 V / 160–375 Ah

   • Fork Lengths: 36″ to 96″ (915 mm to 2,400 mm)

   • Width Overall: 28″ (712 mm)

   • Head Length: 21.5″ to 27″ (546 mm to 686 mm)​

3. WP 3280 High-Lift Pallet Truck

   • Load Capacity: 4,400 lb (2,000 kg)

   • Max Lift Height: 29.5″ (750 mm)

   • Power: 24 V / 74–250 Ah

   • Fork Length: 45.3″ (1,150 mm)

   • Width Overall: 28″ (712 mm)

   • Head Length: 26.2″ to 29.5″ (665 mm to 749 mm)

Options and Accessories

• V-Force Lithium-Ion Batteries: Offer extended run times and opportunity charging without battery damage.

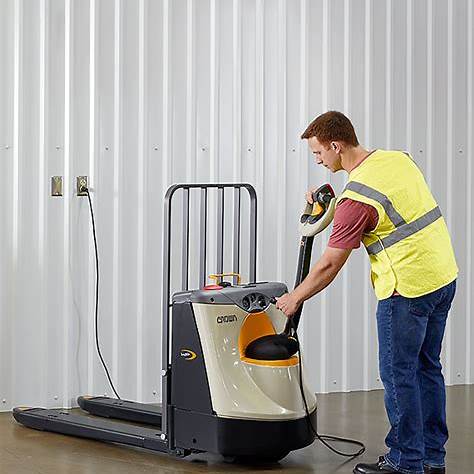

• On-Board Charger: Provides convenient charging without removing the battery.

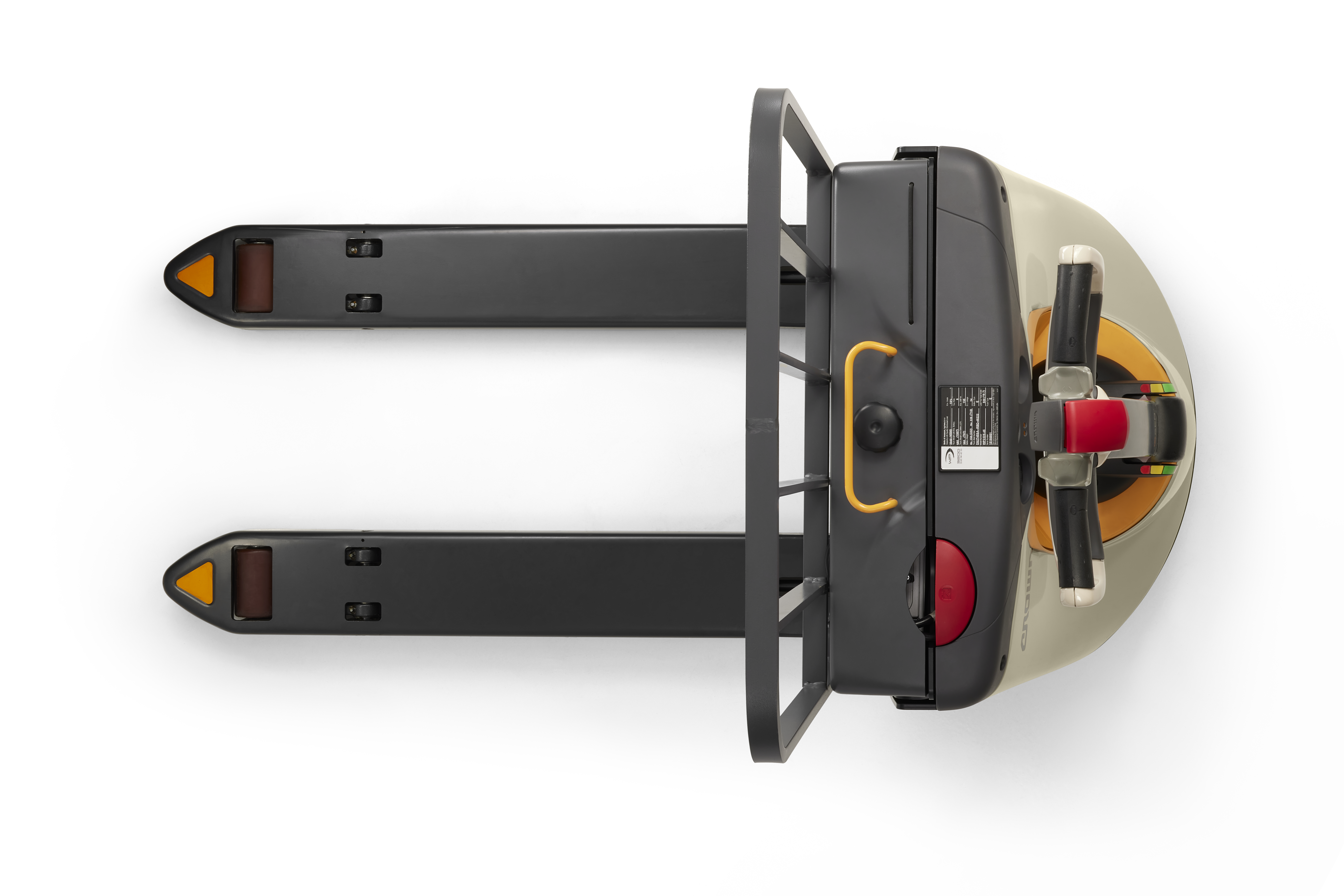

• Load Backrests: Available in short or high configurations for load stability.

• Freezer Conditioning: Ensures performance in cold storage environments.

• Access Control: Keypad or swipe card access to prevent unauthorized use.

• Drive Tire Options: Polyurethane, rubber, or non-marking tires to suit various applications.​

Warranty

Crown backs the WP Series with a Five-Year Power Unit and Fork Weldment Guarantee, reflecting their commitment to durability and customer satisfaction.​
