Compact Power and Ergonomic Design for Demanding Applications
The Crown RT Series Ride-On Pallet Truck is engineered to deliver exceptional performance in high-throughput environments. Its compact design, powerful acceleration, and operator-focused features make it ideal for applications ranging from congested docks to long-distance transport within warehouses.
Key Features
-
Powerful AC Drive Motor: Provides rapid acceleration and a top travel speed of up to 12.5 km/h, ensuring efficient load handling.
-

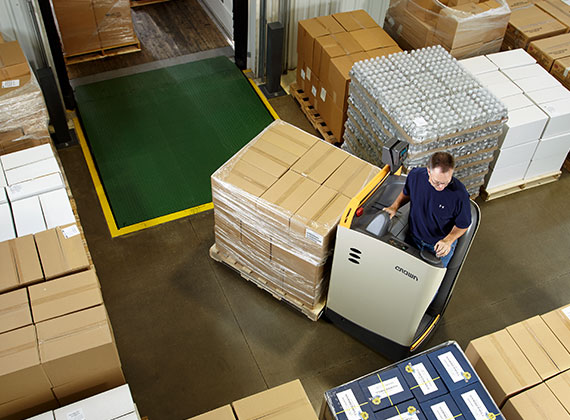

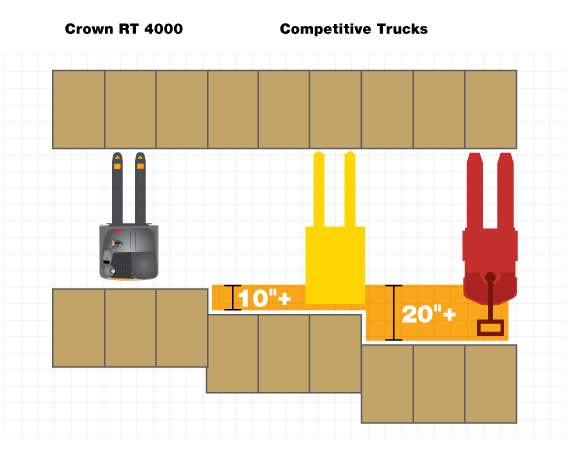

Compact Chassis: The short head length and narrow width enhance maneuverability in tight spaces, allowing for optimized warehouse layouts.
-

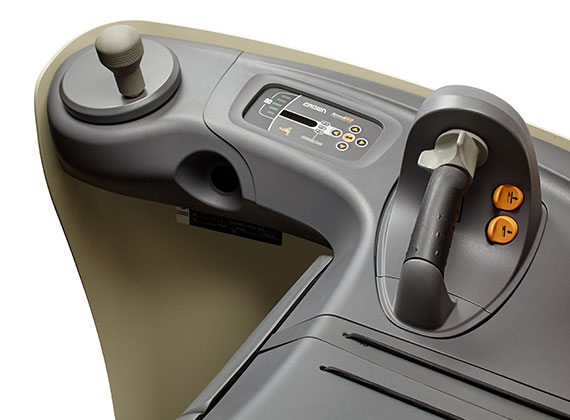

Ergonomic Operator Compartment: Features intuitive controls, a wrap-around soft foam lean pad, and a suspended floorboard to reduce operator fatigue during extended shifts.
-
Patented Entry Bar Safety Switch: Enhances safety by reducing travel speed and alerting the operator if a foot is placed outside the operator compartment.
-
Robust Construction: Built with heavy-gauge steel wrap-around sidewalls and a reinforced steel skirt for durability in demanding environments.
Model Variants
-
RT 4020 Stand-Up Rider Pallet Truck
-
Load Capacity: 2,000 kg
-
Maximum Lift Height: 211 mm
-
Power: 24 V / 222 – 465 Ah
-
Head Length: 876 mm
-
Width Overall: 780 mm
-
Fork Length: 1,150 – 2,400 mm
-
-

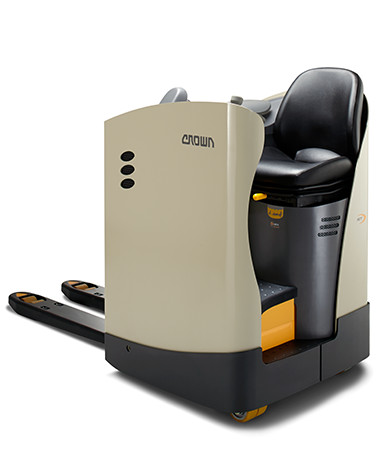

RT 4040 Sit-Down Rider Pallet Truck
-
Load Capacity: 2,000 kg
-
Maximum Lift Height: 211 mm
-
Power: 24 V / 296 – 620 Ah
-
Head Length: 906 mm
-
Width Overall: 950 mm
-
Fork Length: 1,000 – 2,400 mm
-
Options and Accessories
-
On-Board Charger: Provides convenient charging without the need to remove the battery.
-
Battery Rollout: Facilitates easy battery changes for multi-shift operations.
-
Load Backrest: Stabilizes loads and prevents pallet movement during transport.
-
Audible Travel Alarm: Alerts others to the presence of the truck, enhancing workplace safety.
-
Seat Options: Available in cloth or vinyl to suit operator preference and application requirements.
Warranty
Crown backs the RT Series with a comprehensive warranty, reflecting their commitment to durability and customer satisfaction.
