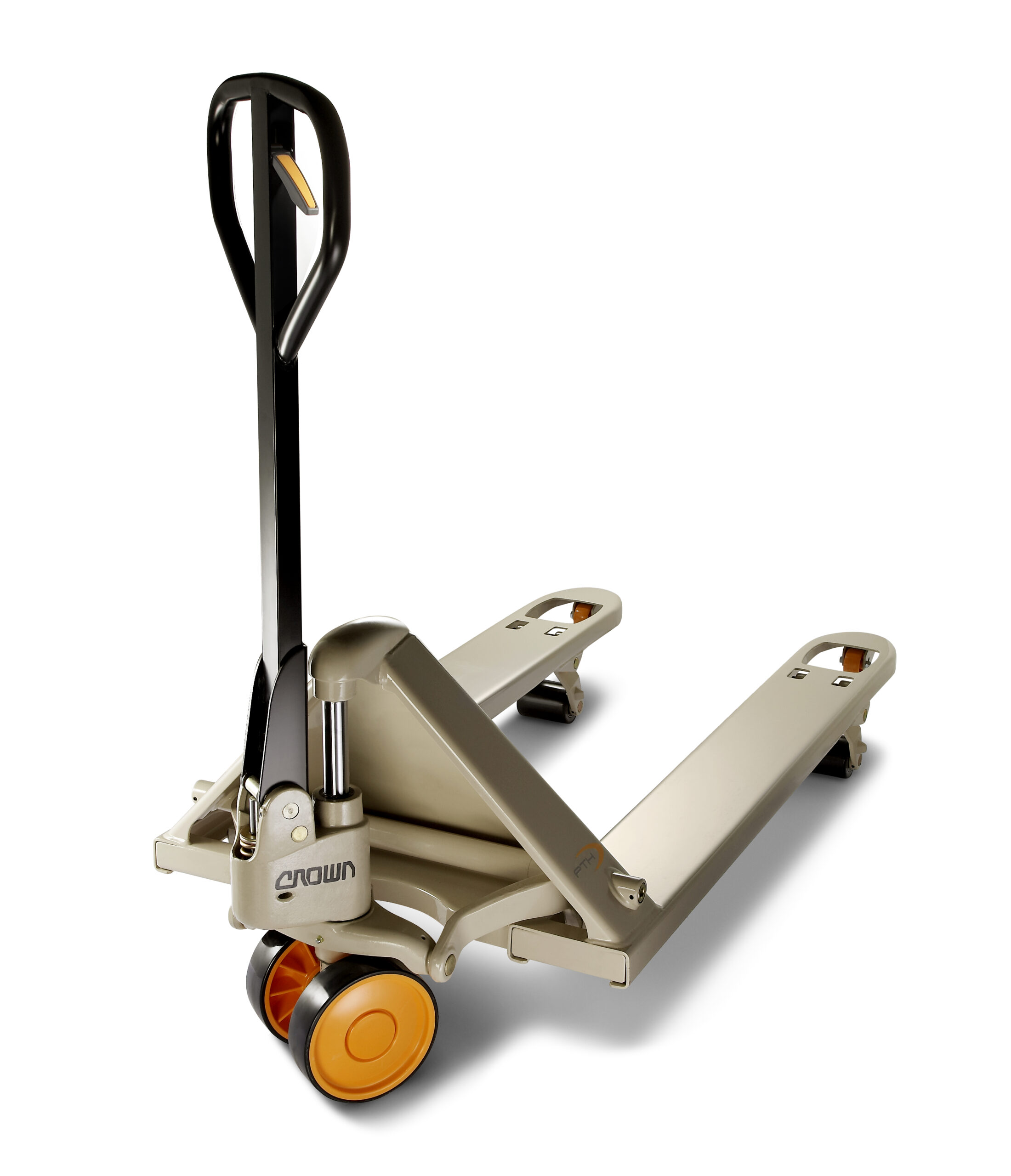

Crown PTH Series Hand Pallet Trucks

Explore

The Crown PTH Series hand pallet trucks are engineered for durability and consistent performance. With a robust steel construction, these manual pallet jacks are designed to withstand demanding warehouse environments, ensuring longevity and reliability.

Key Features

  • Durable Construction: Reinforced steel frame with C-channel forks and cross braces enhances structural integrity.

  • Smooth Maneuverability: 200-degree rotating steer wheels and low rolling resistance bearings facilitate easy handling in tight spaces.

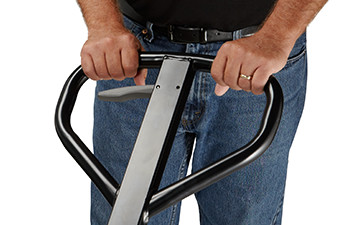

  • Ergonomic Design: Comfortable handle with a neutral lever position reduces operator fatigue.

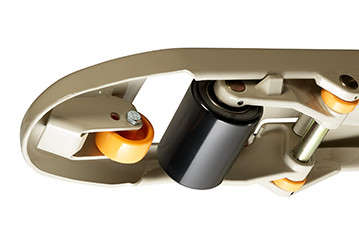

  • Versatile Entry/Exit: Metal ramps on fork tips and strategically positioned rollers allow for effortless pallet entry and exit.

  • Corrosion Resistance: Galvanized pins and shafts, along with hard chrome pistons, minimize rust and wear.

Model Variants

  1. PTH 50 Hand Pallet Jack

    • Power: Manual

    • Load Capacity: 5,000 lb (2,300 kg)

    • Fork Lengths: 36″ to 72″ (915 mm to 1,830 mm)

    • Width Options: 15.8″ to 27″ (400 mm to 685 mm)

  2. PTH 50 with Load Tray

    • Includes a factory-installed 50 lb (22.7 kg) capacity load tray for small item transport.

    • Power: Manual

    • Load Capacity: 5,000 lb (2,300 kg)

    • Fork Lengths: 36″ to 72″ (915 mm to 1,830 mm)

    • Width: 27″ (685 mm)

  3. PTH 50S with Manual Scissor Lift

    • Transforms into a mobile worktable with lift heights up to 31.3″ (800 mm).

    • Power: Manual

    • Load Capacity: 2,200 lb (1,000 kg)

    • Fork Length: 45.3″ (1,150 mm)

    • Width Options: 21.3″ to 27″ (540 mm to 685 mm)

  4. PTH 50PS with Powered Scissor Lift

    • Features an electric lift system for ergonomic load handling.

    • Power: Manual with Electric Lift

    • Load Capacity: 2,200 lb (1,000 kg)

    • Fork Length: 45.3″ (1,150 mm)

    • Width Options: 21.3″ to 27″ (540 mm to 685 mm)

Options and Accessories

  • Galvanized Finish: Ideal for high-moisture or corrosive environments.

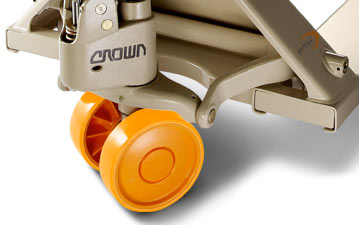

  • Steer & Load Wheel Options: Choose between polyurethane or nylon wheels to suit specific applications.

  • Load Backrest: Provides additional load stability.

  • Skid Adapter: Elevates fork height for skid handling.

  • Work Assist Accessories: Enhance productivity with customizable add-ons.

Warranty

Crown offers a comprehensive warranty, including a three-year coverage on the hydraulic pump and frame, ensuring peace of mind and long-term value.
