Revolutionizing Workplace Mobility and Safety

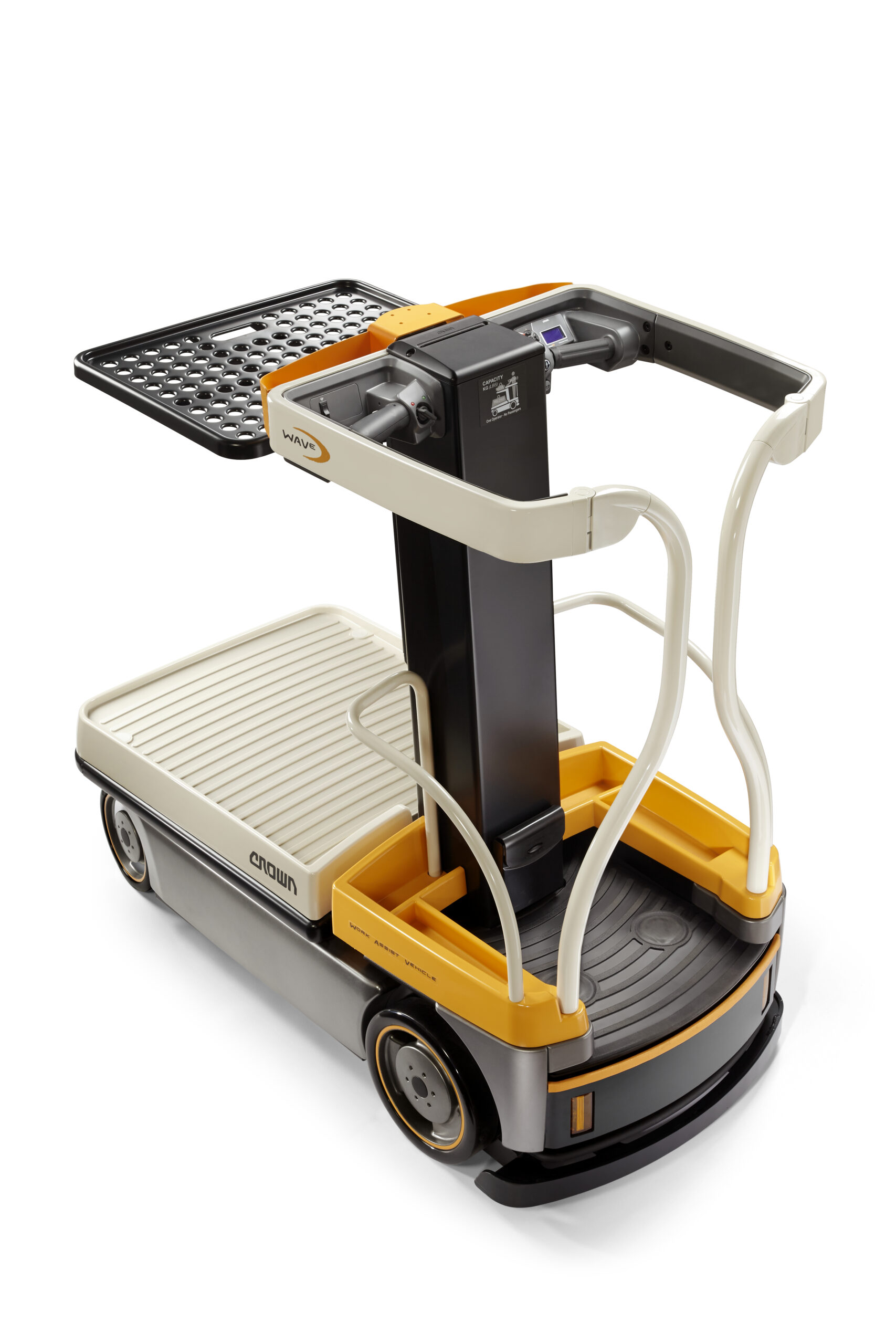

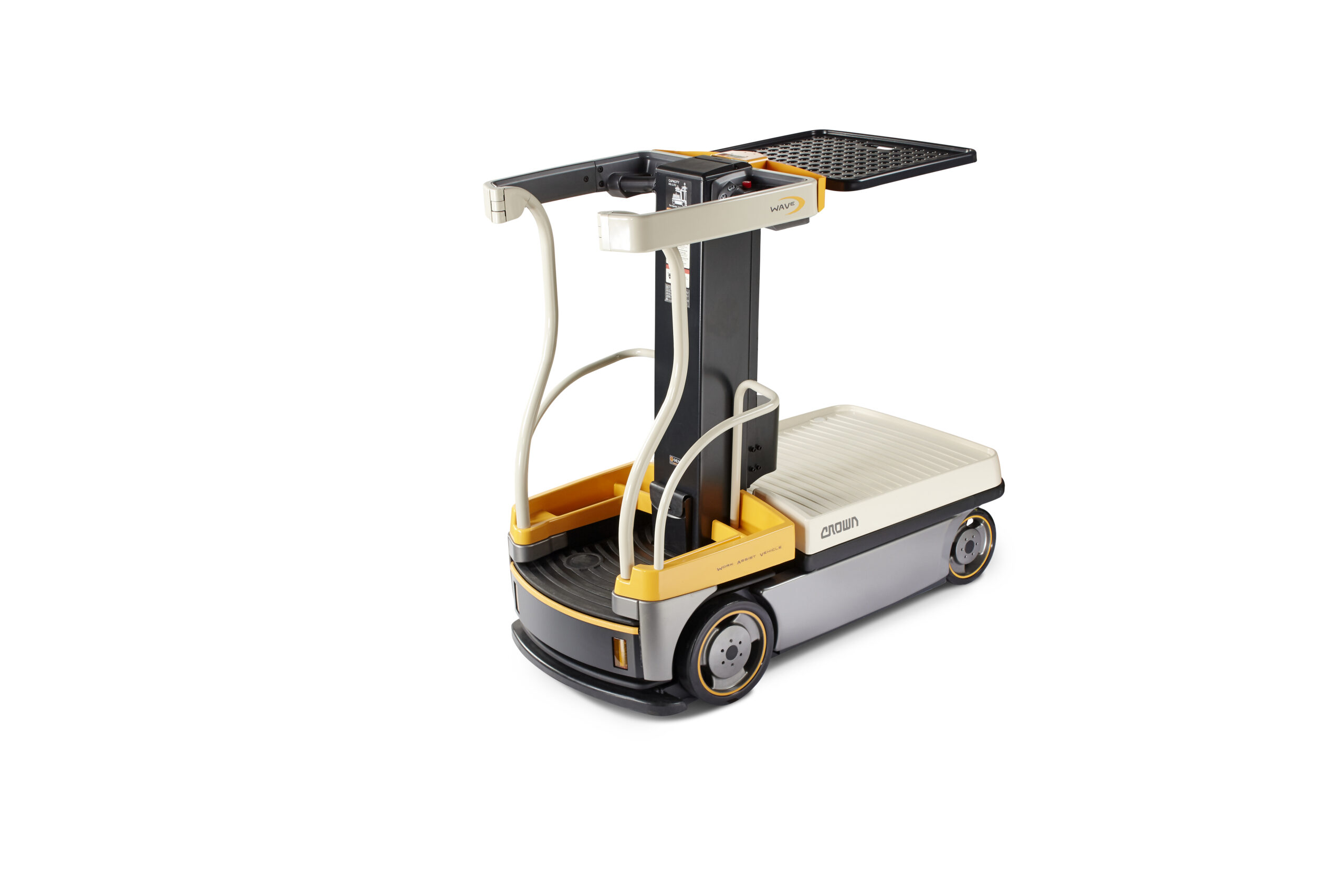

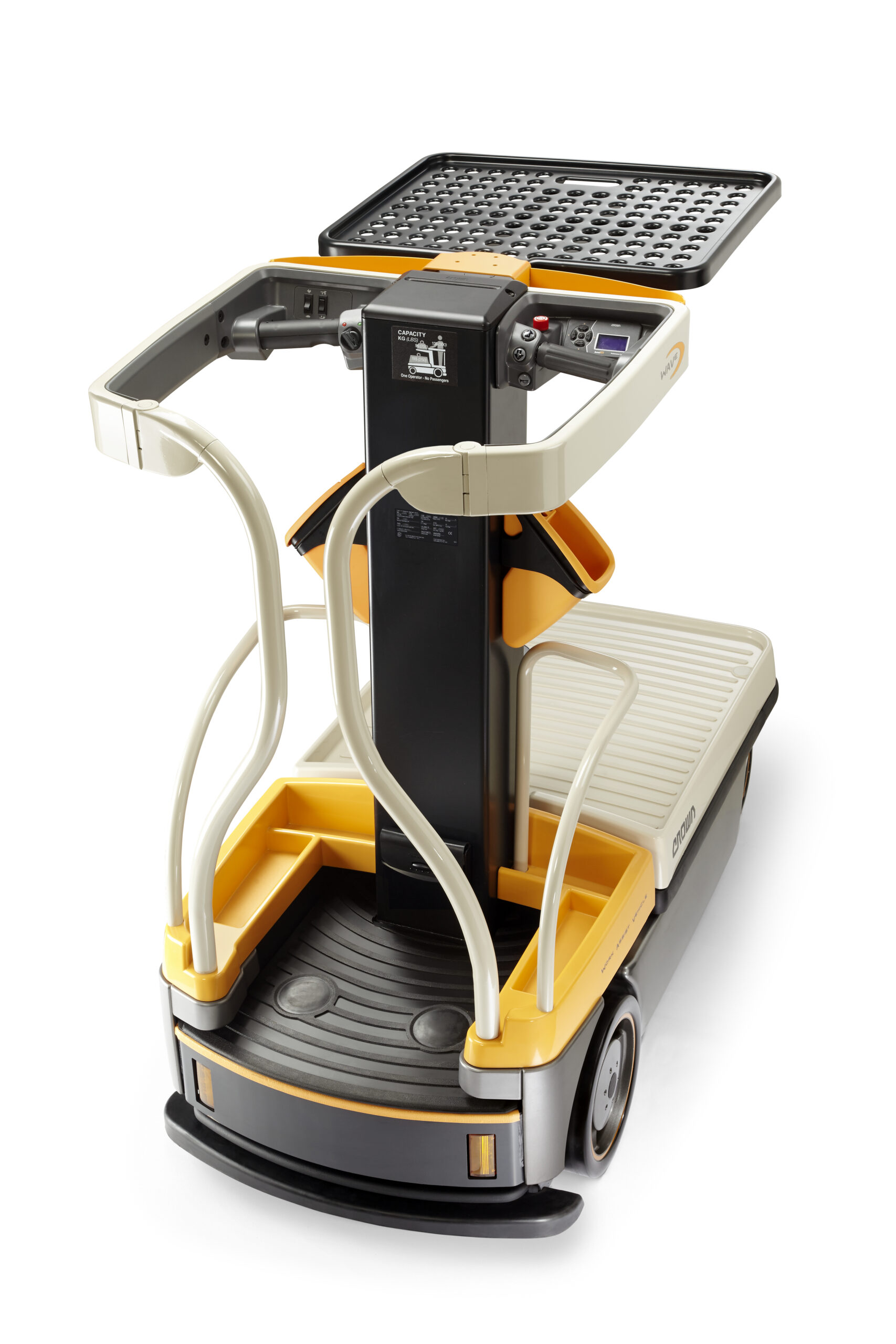

The Crown WAV Series Work Assist Vehicle, commonly known as the WAVE, is a mobile productivity solution designed to replace ladders in various applications. It enables a single operator to safely and efficiently perform tasks that traditionally required two people, enhancing productivity and reducing workplace injuries.
Key Features
-
Working Height: Reach heights up to 17 feet (5.2 meters), allowing operators to access elevated areas safely.
-
Travel Speed: Up to 5 mph (8 km/h), facilitating quick movement between tasks.
-
Compact Design: Navigate through aisles and doorways as narrow as 32 inches (813 mm).
-
Simultaneous Elevation and Travel: Enhances workflow efficiency by allowing the operator to move and lift simultaneously.
-
Four-Point Safety System:
-
Interlocking Gates: Must be closed to raise or lower above 20 inches (508 mm).
-
Platform Sensors: Prevent movement if the operator is not properly positioned.
-
Hand Sensors: Ensure both hands are on the controls during operation.
-
Dual Foot Pedals: Require both feet on the platform to enable movement.
-
-
Access 1 2 3® System: Provides comprehensive control and diagnostics for enhanced safety and performance.
Specifications
-
Model: WAV 60-118
-
Power: 24-volt electric system
-
Load Capacities:
-
Operator Compartment: 300 lbs (135 kg)
-
Load Tray: 200 lbs (90 kg)
-
Load Deck: 250 lbs (115 kg)
-
-
Platform Lift Height: 118 inches (2997 mm)
-
Overall Vehicle Dimensions:
-
Length: 60 inches (1525 mm)
-
Width: 29.5 inches (750 mm)
-
Minimum Turning Radius: 47.5 inches (1207 mm)
-
-
Vehicle Weight (with battery): 1,420 lbs (645 kg)
Applications
The WAVE is ideal for a variety of applications, including:
-
Order Picking: Efficiently retrieve items from elevated locations.
-
Inventory Restocking: Safely replenish stock at various heights.
-
Order Fulfillment: Streamline the picking process in warehouses.
-
Manufacturing and Assembly: Assist in production tasks requiring elevation.
-
Load Transport: Move materials within facilities safely.
-
Equipment Inspection: Access equipment for routine checks.
-
Facility Maintenance: Perform maintenance tasks at height.
Options and Accessories
-
Power Load Tray: Allows automatic adjustment for various load sizes.
-
Energy Solutions: Choose between lead-acid and lithium-ion batteries to meet specific application needs.
-
Retractable Charger Cord Reel: Enhances charging convenience.
-
Mast Storage Bins: Provide additional storage without compromising space.
-
Lighting Options: Flashing lights and work lights improve visibility and safety.
-
Extended Warranty: Options available for up to five years, covering major components and wearables.
Benefits
-
Enhanced Productivity: Complete tasks faster by reducing the need for ladders and multiple personnel.
-
Improved Safety: Minimize the risk of falls and injuries associated with ladder use.
-
Cost Savings: Reduce labor costs and potential workers’ compensation claims.
-
Versatility: Adaptable to various industries and applications, making it a valuable asset across operations.
The Crown WAV Series Work Assist Vehicle offers a safer, more efficient alternative to traditional methods of accessing elevated work areas. Its compact design, combined with advanced safety features and versatile applications, makes it an essential tool for modern material handling needs.
