Versatile Solutions for Efficient Material Handling
The UniCarriers WCX and WSX Series walkie stackers are engineered to enhance productivity in various warehouse and industrial applications. With load capacities ranging from 3,000 to 4,000 lbs and maximum lift heights up to 152 inches, these electric stackers offer precise control, exceptional maneuverability, and ergonomic design for operator comfort.logisnextamericas.comAll Machines
Key Features
-
Powerful AC Drive Motor: Both series are equipped with a 24V AC-powered drive motor, delivering consistent performance and energy efficiency.logisnextamericas.com+1logisnextamericas.com+1
-
Advanced Braking System: Features regenerative motor torque, proportional plugging, and a spring-applied, electronically released disc brake to reduce component wear and extend part life.logisnextamericas.com+1All Machines+1
-
Ergonomic Controls: Designed with a large steering control head, spring-loaded handle, and a 190° steering arc for easy navigation in tight spaces.logisnextamericas.com+1eliftruck.com+1
-
Robust Mast Design: The flat face mast with rolled steel channels and thick inner rails ensures increased capacity retention and durability.logisnextamericas.com

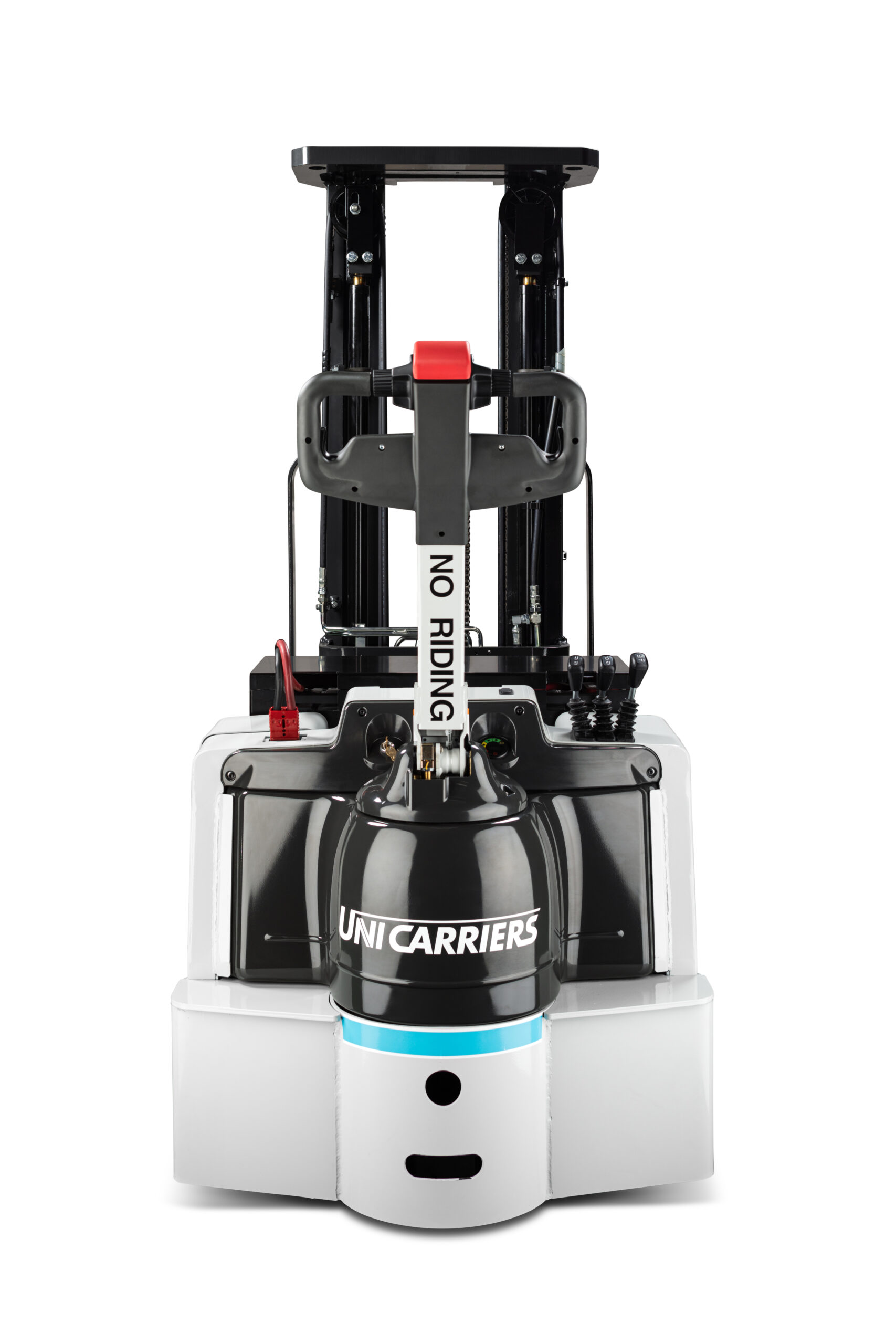

WCX Series – Walkie Counterbalanced Stackers
Ideal for applications requiring versatility without the need for outriggers, the WCX Series is perfect for handling enclosed pallets and operating in confined spaces.
-
Models: WCX30 (3,000 lbs capacity), WCX40 (4,000 lbs capacity)
-
Maximum Fork Height: 152 incheslogisnextamericas.com+6All Machines+6forkliftsmi.com+6
-
Chassis Width: 37.3 inchesLingle Equipment+9logisnextamericas.com+9logisnextamericas.com+9
-
Length to Fork Face: 78.3 inchesNational Lift Truck+6logisnextamericas.com+6All Machines+6
-
Turning Radius: 69.4 inches
-
Applications: Trailer loading/unloading, load transfer, and stacking in tight areas.eliftruck.com+2Lingle Equipment+2National Lift Truck+2

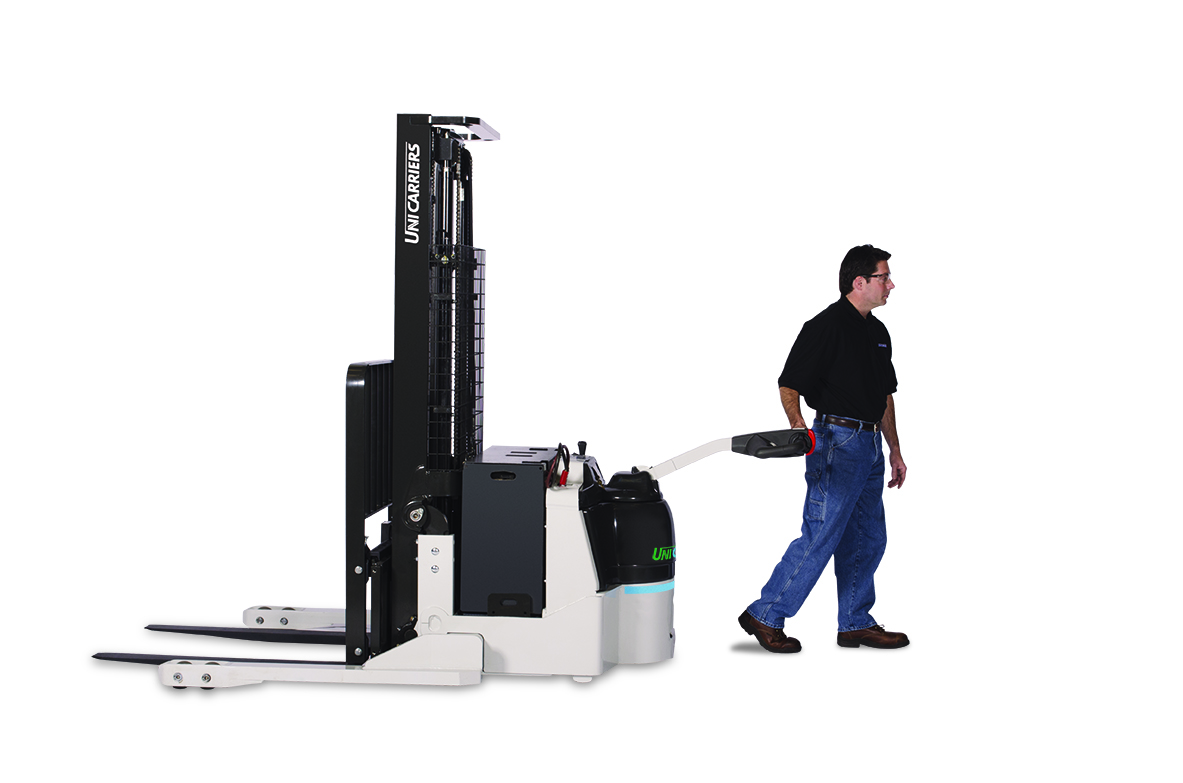

WSX Series – Walkie Straddle Stackers
Designed for stability and maneuverability, the WSX Series is suitable for stacking in narrow aisles and congested environments.royalforkliftinc.com
-
Models: WSX30S (3,000 lbs capacity), WSX40S (4,000 lbs capacity)All Machines+3National Lift Truck+3logisnextamericas.com+3
-
Maximum Fork Height: 152 inchesAll Machines
-
Chassis Width: 32.4 incheslogisnextamericas.com
-
Length to Fork Face: 74.0 inches (WSX30S), 78.5 inches (WSX40S)Lingle Equipment+5logisnextamericas.com+5All Machines+5
-
Turning Radius: 67.7 inches (WSX30S), 72.4 inches (WSX40S)forkliftsmi.com
-
Applications: Narrow aisle stacking, short travel distances, and operations requiring enhanced stability.royalforkliftinc.com
Options and Accessories
-
Battery Compartment Sizes: Accommodates various battery sizes with adjustable retainers for flexibility.logisnextamericas.com
-
Safety Features: Includes travel alarm, electric horn, and reduced travel speed above free lift for enhanced safety.Forklifts of Minnesota+1ogdenforklifts.com+1
-
Customization: Available with optional side gates, rollers, and auxiliary control levers to meet specific operational needs.
Warranty
UniCarriers backs the WCX and WSX Series with a comprehensive warranty, reflecting their commitment to durability and customer satisfaction.
