High-Performance Pallet Handling with Operator Comfort

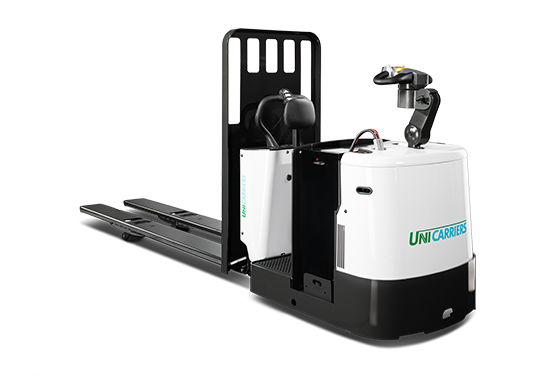

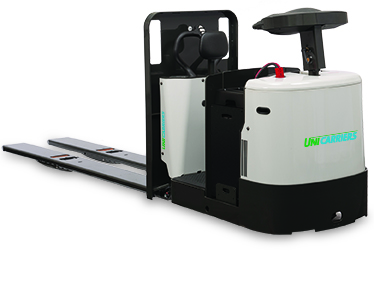

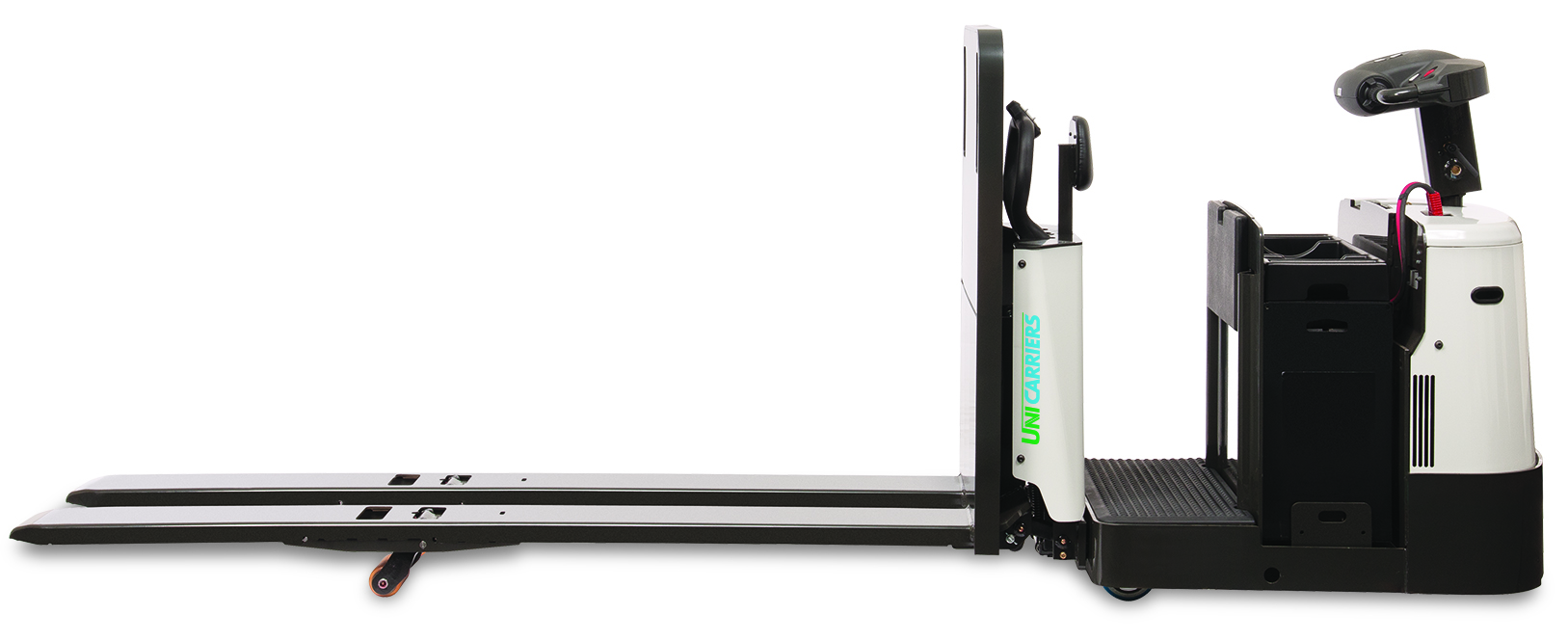

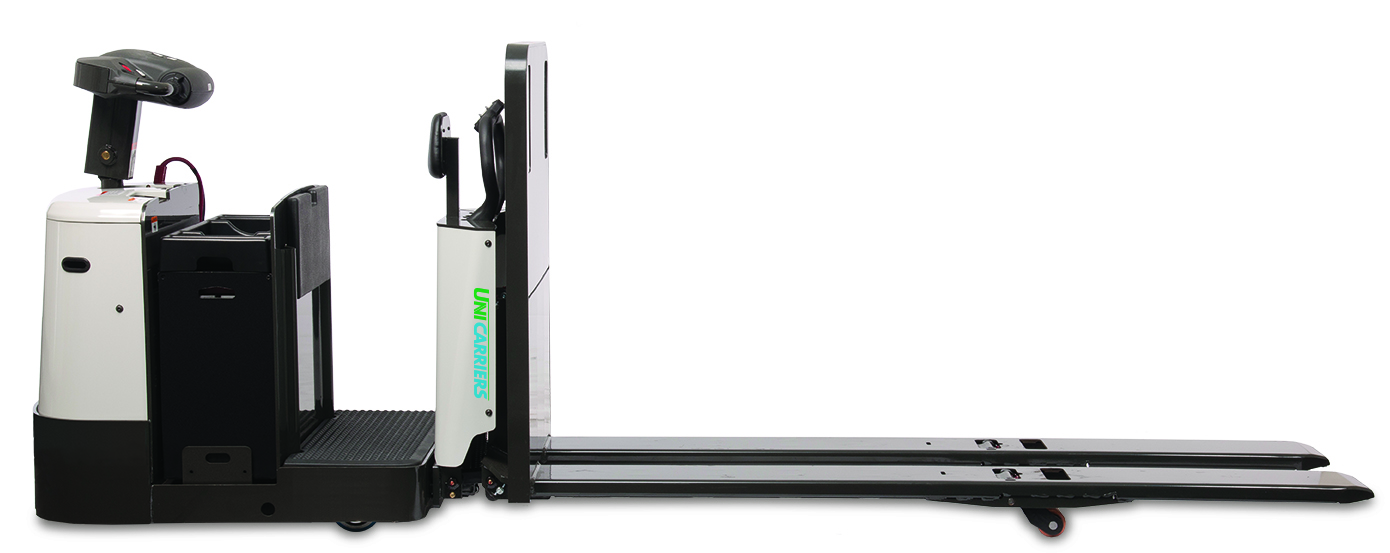

The UniCarriers SPX Series center control rider pallet trucks are engineered for high-throughput operations requiring durability and efficiency. With load capacities ranging from 6,000 to 8,000 lbs, these 24V AC-powered trucks deliver consistent performance in various environments, including cold storage facilities down to -20°F (-28.9°C) and dry ambient warehouses.
Key Features
-
Efficient AC Drive Motor: The 5.2 HP brushless AC drive motor provides greater torque and faster travel speeds, enhancing productivity while using less energy per cycle.
-
Sealed Systems for Harsh Conditions: Equipped with sealed switches, an epoxy-coated control board, IP65-rated sealed controller, and sealed steer race, the SPX Series ensures reliable operation in wet, cold, and dry environments.
-
Ergonomic Design: Features a spacious operator platform with a rubber-padded, intermediate high-speed handrail and large, soft-touch control buttons for improved comfort and control.
-
Smart Electric Brake System: Utilizes regenerative motor torque before brake actuation, reducing component wear and extending service life.
-
Onboard Diagnostics: Integrated diagnostics system provides real-time feedback, simplifying maintenance and minimizing downtime.
Model Variants
-
SPX60B
-
Load Capacity: 6,000 lbs
-
Power: 24V AC
-
Chassis Width: 35.1 in
-
Chassis Height: 56.9 in
-
Maximum Fork Height: 9.25 in
-
-
SPX80B
-
Load Capacity: 8,000 lbs
-
Power: 24V AC
-
Chassis Width: 35.1 in
-
Chassis Height: 56.9 in
-
Maximum Fork Height: 9.25 in
-
-
SPXE60
-
Load Capacity: 6,000 lbs
-
Power: 24V AC
-
Chassis Width: 35.1 in
-
Chassis Height: 56.9 in
-
Maximum Fork Height: 9.25 in
-
-
SPXE80
-
Load Capacity: 8,000 lbs
-
Power: 24V AC
-
Chassis Width: 35.1 in
-
Chassis Height: 56.9 in
-
Maximum Fork Height: 9.25 in
-
Options and Accessories
-
Lithium-Ion Battery Options: Maintenance-free batteries with a life expectancy of up to 5,000 full cycles, reducing total cost of ownership and downtime.
-
Coast Control with Sidetracker: Enhances order picking efficiency by allowing the operator to walk alongside the truck.
-
Multi-Function LCD Display: Provides access to customized performance settings, displays battery discharge indicator, and offers onboard diagnostics and troubleshooting.
-
Stainless Steel Axles and Linkage Pins: Enhances durability and corrosion resistance in harsh environments.
Warranty
UniCarriers backs the SPX Series with a comprehensive warranty, reflecting their commitment to durability and customer satisfaction.
