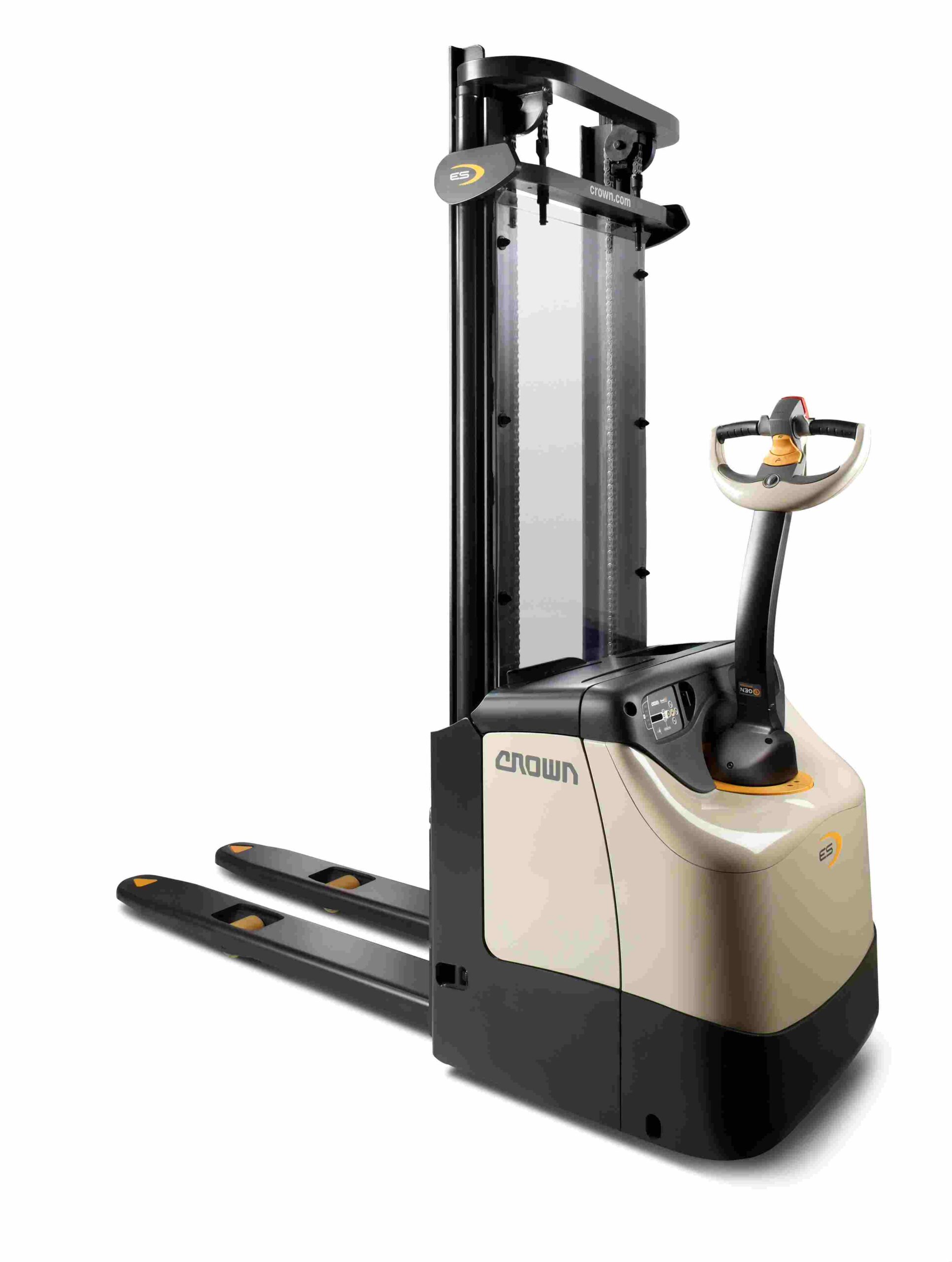

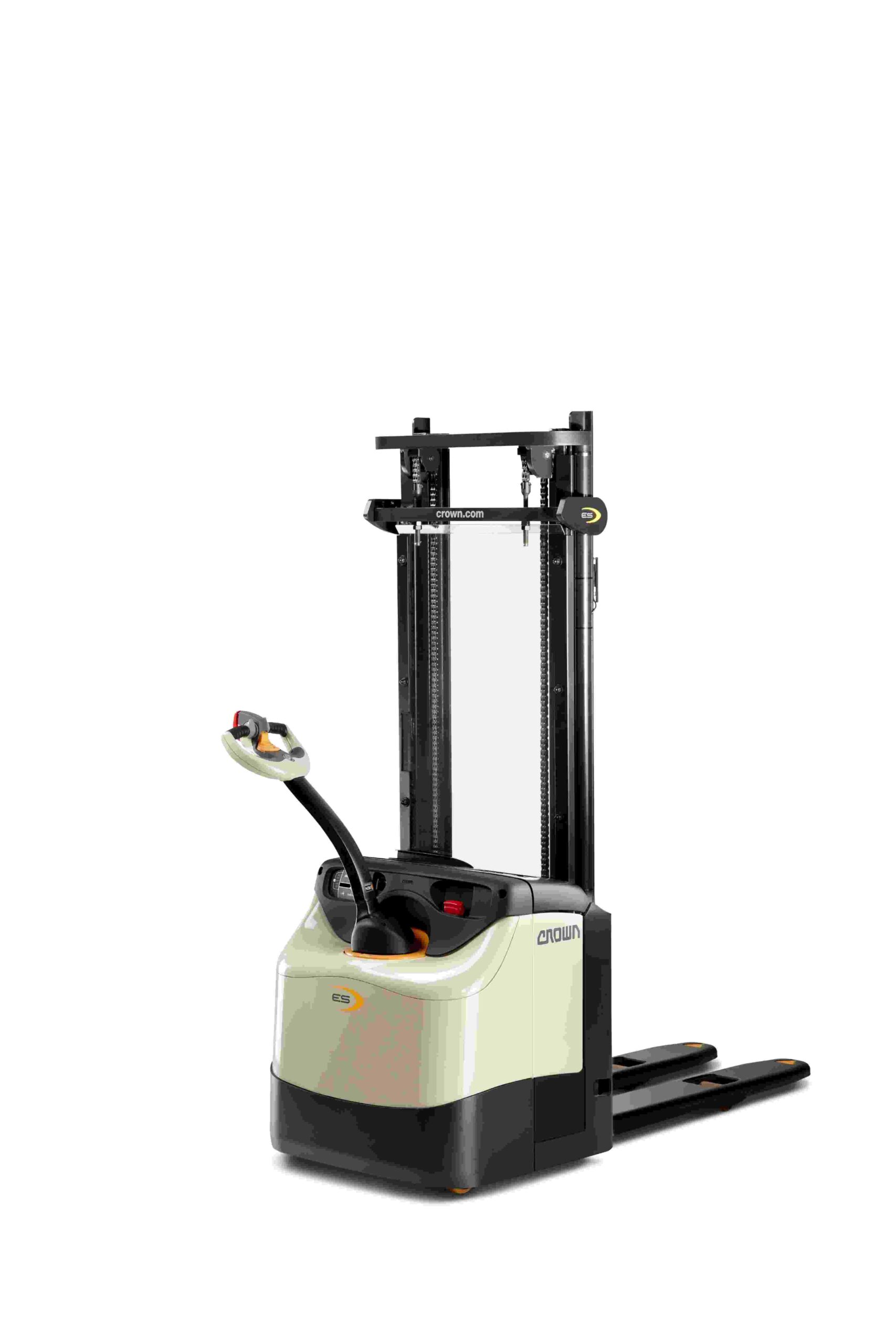

Crown ES Series Fork Over Walkie Stacker

Explore

Precision and Strength in Compact Spaces

The Crown ES Series Fork Over Walkie Stacker delivers powerful performance, responsive control, and exceptional maneuverability, making it ideal for operations in confined spaces. Its robust construction and advanced features ensure safe and productive handling of various load types.

Key Features

  • Load Capacity: Up to 3,500 lbs

  • Maximum Lift Height: Up to 132 inches

  • Power System: 24V electric system with battery capacities ranging from 250 to 375 Ah

  • Compact Design: With a head length of 31 inches and overall width of 31.5 inches, the ES Series is designed for tight aisle applications

  • Durable Construction: Features a Crown-built AC traction motor, heavy-duty cast iron gearbox, and a formed steel tiller arm with die-cast aluminum control handle for longevity in tough environments

  • Advanced Control: The innovative X10® handle includes a rabbit/turtle switch for two levels of programmable travel performance, allowing operators to match the setting to their experience level or specific task

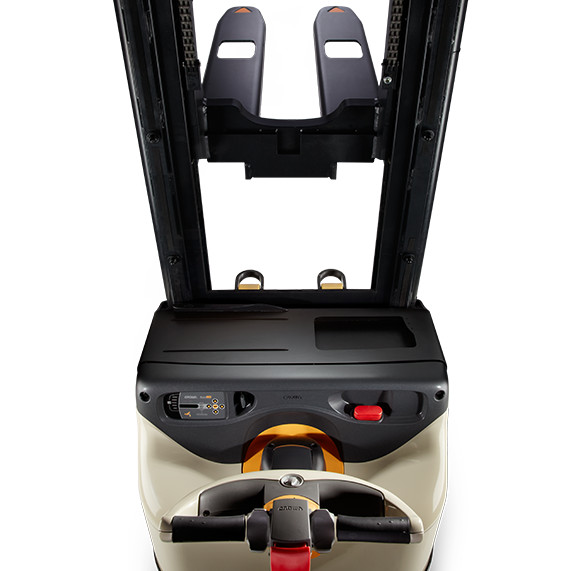

  • Enhanced Visibility: A contoured, low-profile power unit and wide-open mast window provide operators with a clear view of the fork tips and outriggers, improving safety and efficiency

  • Proportional Lift and Lower Functions: Ensure precise load handling at various heights

  • Brake Override Function: Allows operation in creep speed mode with the handle position nearly vertical for precise maneuvering in tight spaces

Applications

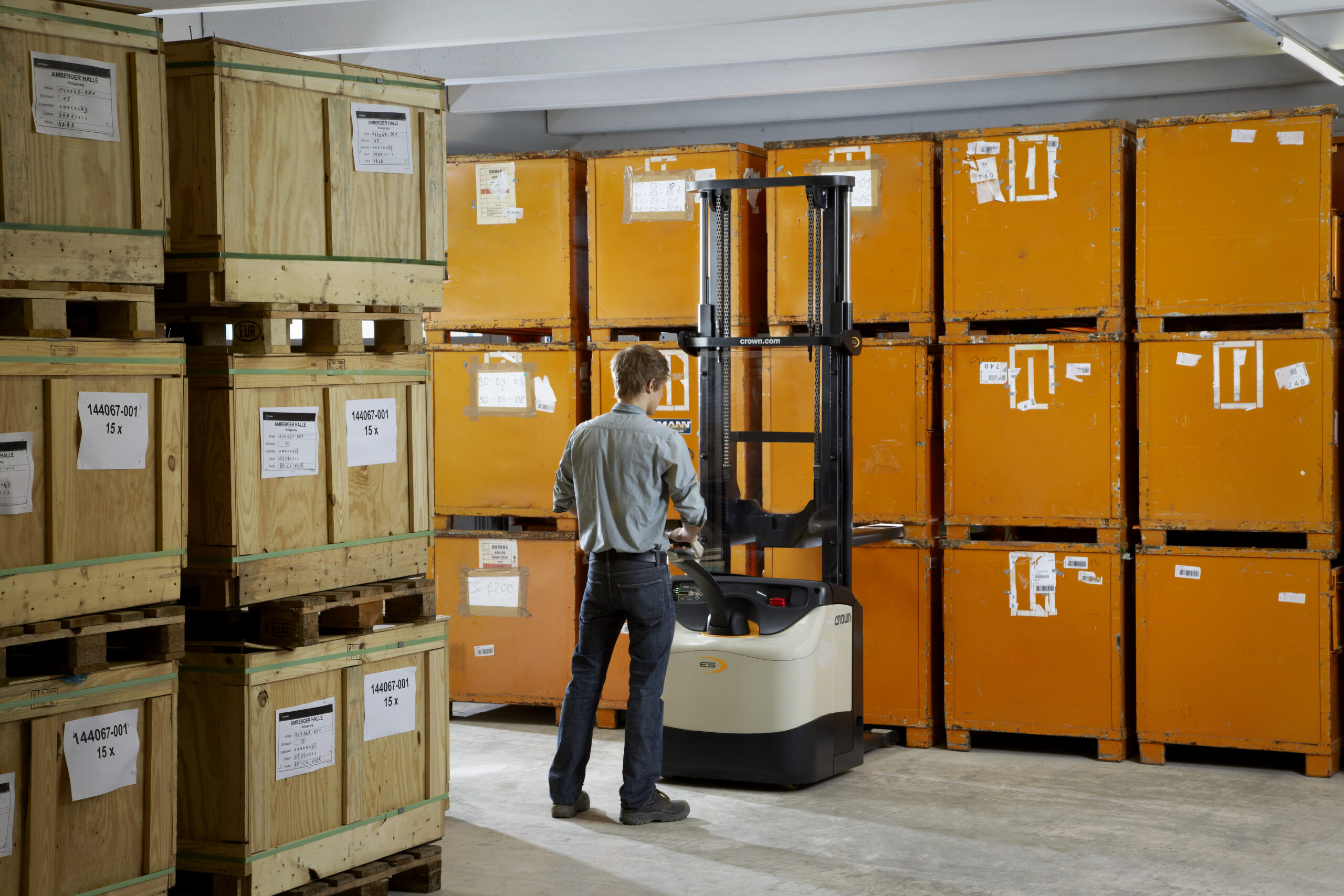

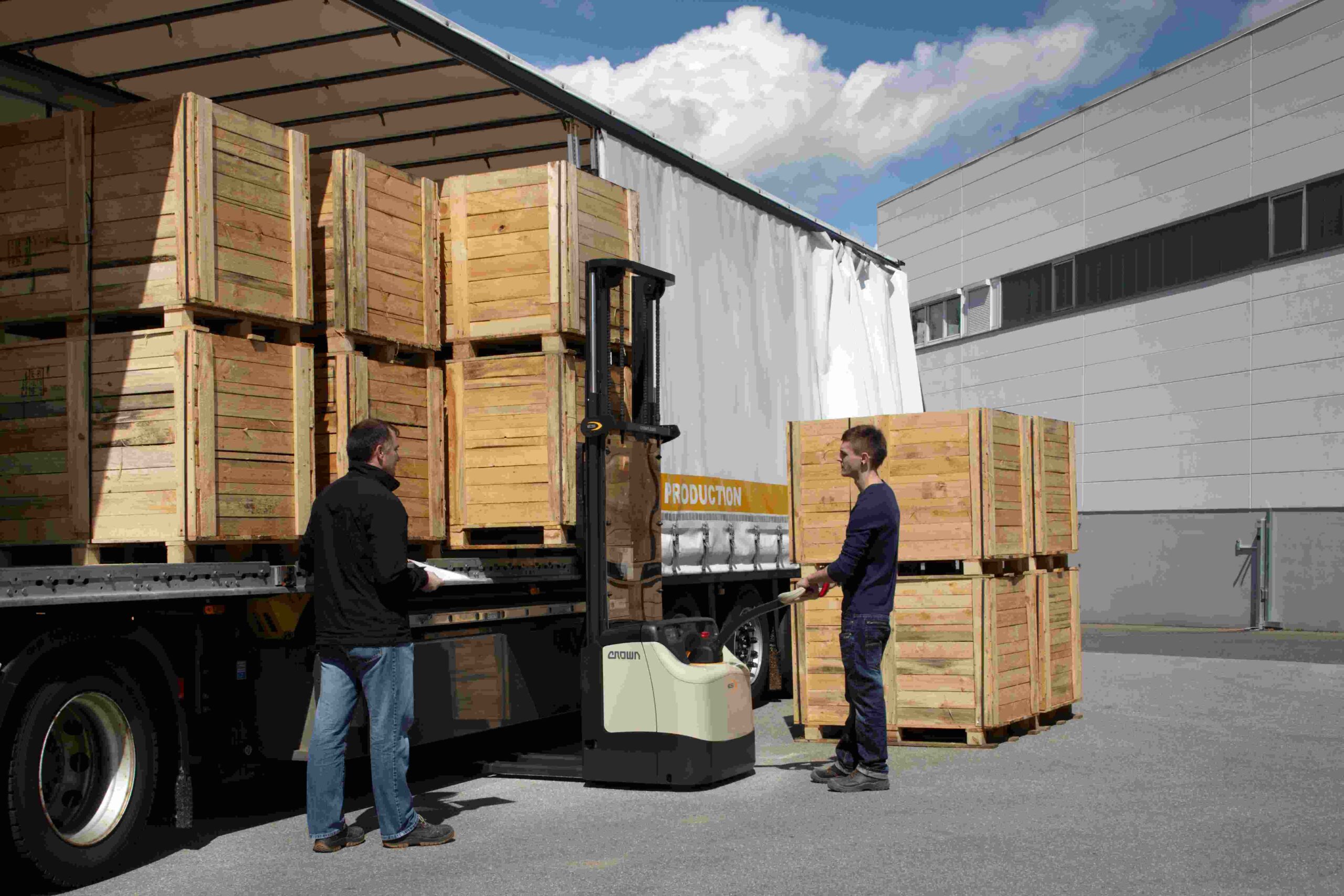

Ideal for stacking and transporting open-bottom pallets, skids, and wire baskets in warehouses, manufacturing facilities, and retail environments where space is limited.

Warranty

Crown backs the ES Series with a comprehensive warranty, reflecting their commitment to durability and customer satisfaction.
