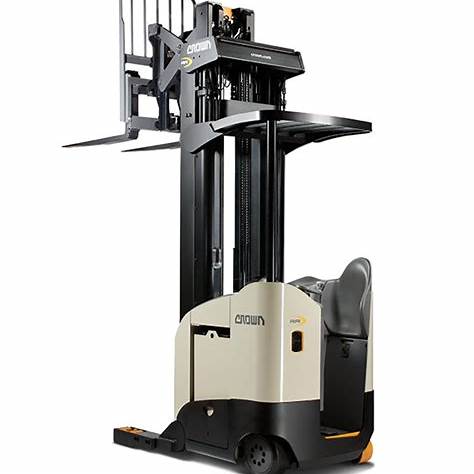

Crown RR/RD Series Reach Forklift Trucks

Smart and Powerful

The Crown RR/RD Series reach trucks combine robust power with intelligent technology, delivering exceptional performance in narrow-aisle applications. Engineered for precision, comfort, and reliability, these trucks are designed to enhance productivity in high-density storage environments.

Key Features

• Load Capacity: 3,200 – 4,500 lbs

• Power Options: 24V or 36V electric systems

• Maximum Lift Height: Up to 442 inches

• Operator Compartment: Fully integrated design with Variable Side Stance for five solid points of contact, enhancing comfort and safety

• Smart Systems: Continuously monitor and analyze lift truck activity to control travel speed, braking, cornering speed, and position hold

• Multi-Task Control Handle: Allows operators to manage travel direction and speed while maneuvering during lift and reach operations

• OnTrac® Anti-Slip Traction Control: Reduces tire spin during acceleration, plugging, and braking, resulting in shorter stopping distances and longer tire life

• Entry Bar Safety Switch: Encourages safe foot position within the operator compartment by reducing travel speed and providing alerts when depressed

Model Variants

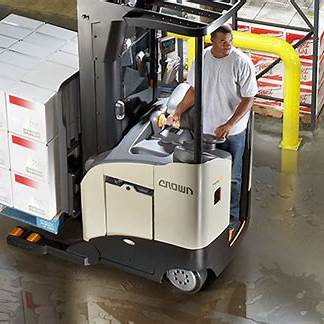

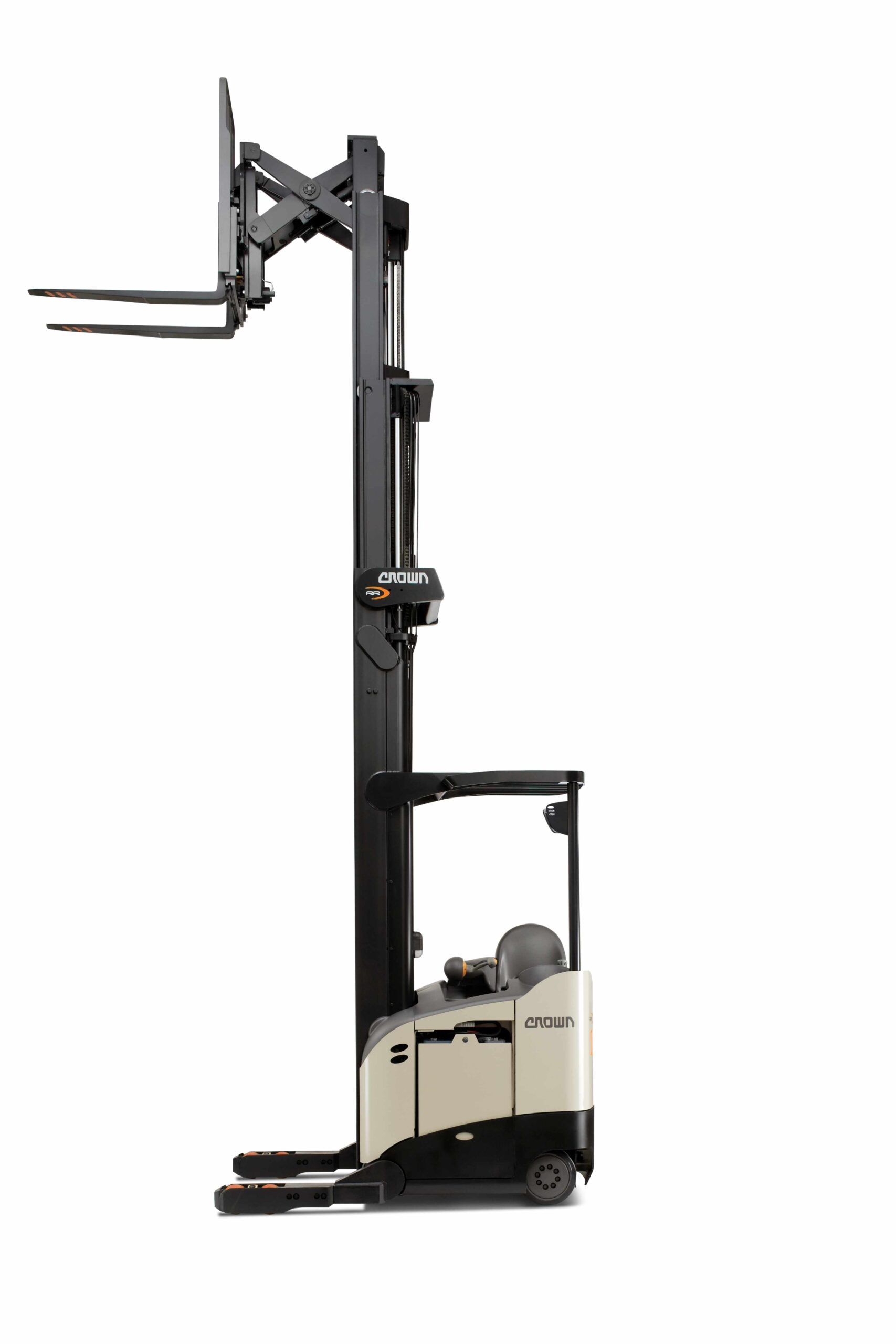

RR 5700 Series – Single Reach Truck

• Load Capacity: 3,500 – 4,500 lbs

• Power: 24V or 36V

• Head Length: 51.25 – 58.04 inches

• Maximum Lift Height: Up to 400 inches

• Applications: Ideal for narrow aisles and high stacking in warehouses and distribution centers

RD 5700 Series – Double Reach Truck

• Load Capacity: 3,200 lbs

• Power: 36V

• Head Length: 56.48 – 62.85 inches

• Maximum Lift Height: Up to 400 inches

• Applications: Designed for double-deep pallet storage, maximizing storage density

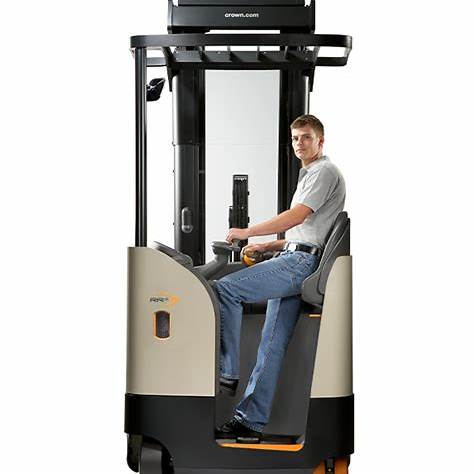

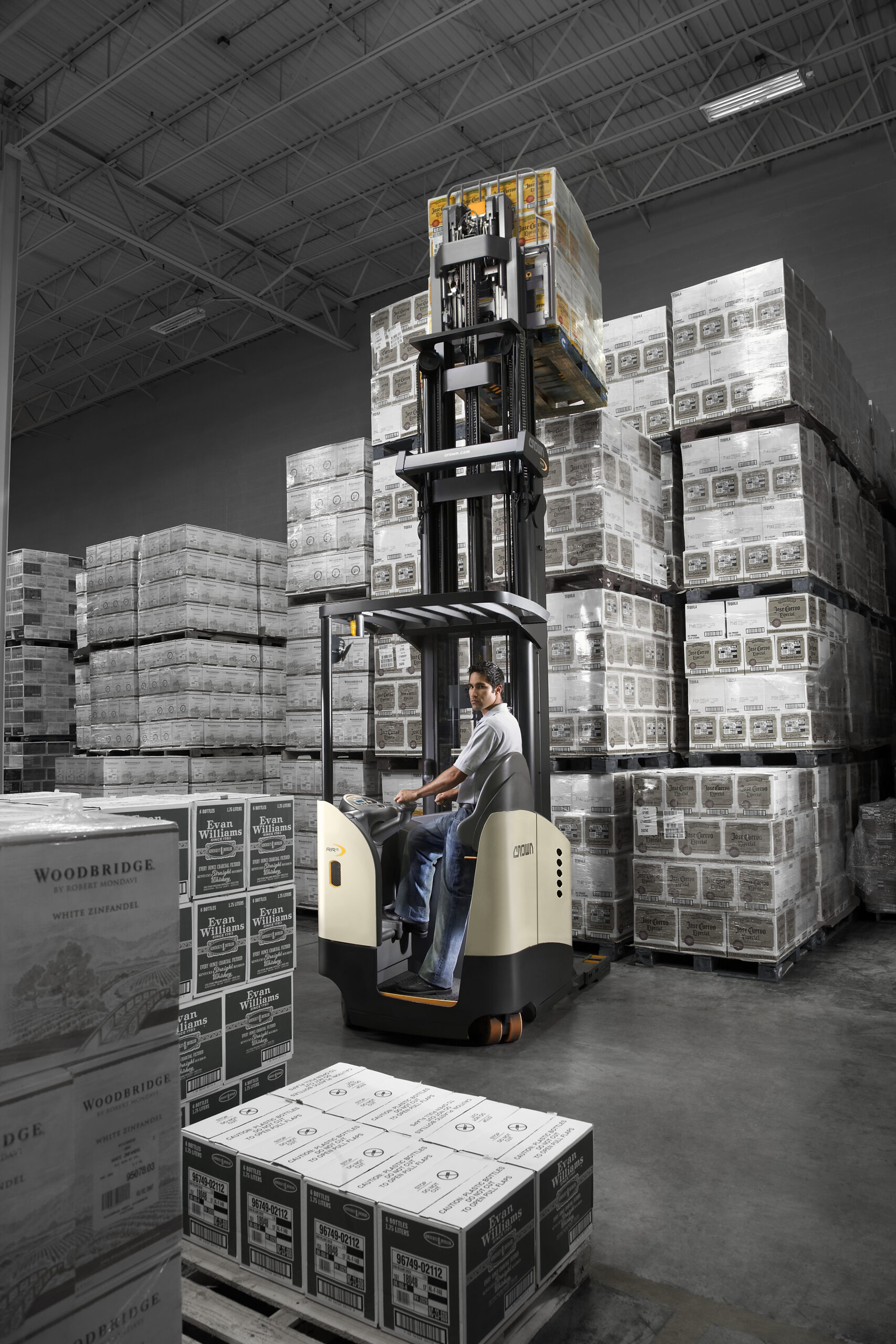

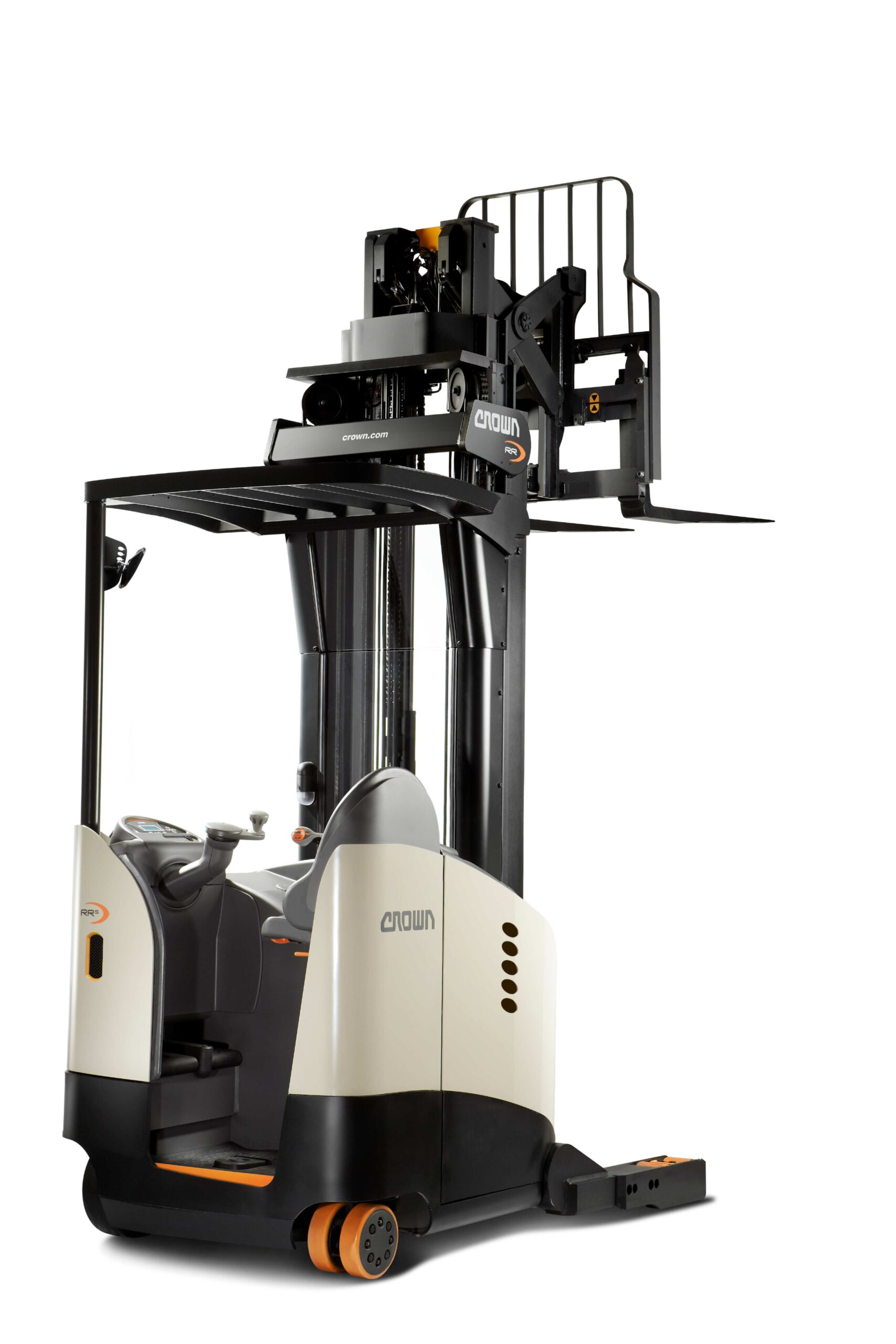

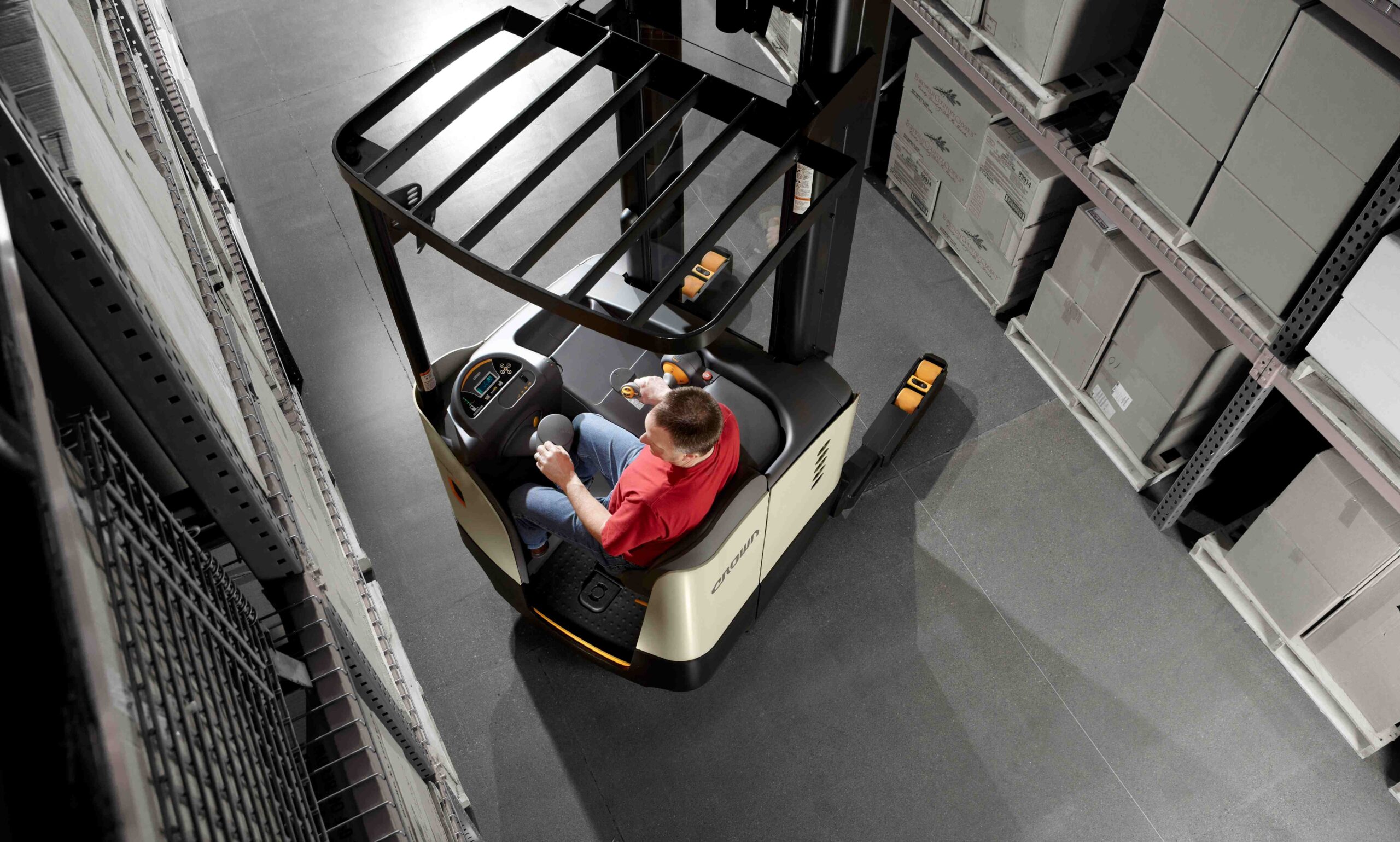

RR 5700S Series – Sit-Down Single Reach Truck

• Load Capacity: 4,500 lbs

• Power: 36V

• Head Length: 55.67 – 64.79 inches

• Maximum Lift Height: Up to 442 inches

• Applications: Provides flexibility for operators who prefer sitting, standing, or leaning during operation

RD 5700S Series – Sit-Down Double Reach Truck

• Load Capacity: 3,200 lbs

• Power: 36V

• Head Length: 60.46 – 69.58 inches

• Maximum Lift Height: Up to 442 inches

• Applications: Combines the benefits of double-deep reach with sit-down operator comfort

Options and Accessories

• Rack Height Select: Programmed mast stops at preselected heights for precise load placement

• Tilt Position Assist: Preprogrammed fork tilt positions for optimal pallet entry and exit

• Capacity Monitor: Displays approximate load weight and alerts when capacity is exceeded

• Camera and Color Monitor: Enhances visibility at height for improved safety and accuracy

• Laser Fork Guide: Assists in precise fork positioning at height

• Quick Change Load Wheels: Patented design allows wheel replacement in 2.5 minutes, reducing downtime

• Work Assist Accessories: Customizable options to enhance operator productivity and comfort

Applications

The RR/RD Series is suited for:

• High-Density Warehousing: Maximizing vertical storage space in narrow aisles

• Cold Storage: Optional features available for freezer environments

• Retail and E-commerce Fulfillment: Efficient handling of diverse product sizes and weights

• Manufacturing Facilities: Reliable performance in demanding production environments

Warranty

Crown backs the RR/RD Series with a comprehensive warranty, reflecting their commitment to durability and customer satisfaction.
