Crown RM/RMD Series Reach Forklift Trucks

Explore

Elevate Your Expectations

The Crown RM/RMD Series redefines the narrow-aisle reach truck with its exclusive MonoLift® Mast, delivering unprecedented lift heights up to 505 inches. This innovative design offers superior visibility, greater capacity at height, and enhanced operator comfort, making it ideal for high-density storage applications.


Key Features

  • MonoLift® Mast: Patented boxed-in cross-section mast reduces twisting and flexing, providing stability and capacity without a wider wheelbase.

  • Lift Height: Up to 505 inches, enabling efficient use of vertical storage space.

  • Load Capacity: 3,200 – 4,500 lbs, depending on model configuration.

  • Power System: 36V electric system with battery capacities ranging from 930 to 1,395 Ah.

  • Xpress Lower™ Technology: Doubles lowering speed to 240 feet per minute without additional energy consumption, enhancing throughput.

  • Regenerative Lowering: Captures energy during mast lowering, extending battery life and reducing costs.

  • OnTrac® Anti-Slip Traction Control: Minimizes tire spin during acceleration, plugging, and braking for optimized performance on various surfaces.

  • Operator Compartment: Ergonomically designed with adjustable seating, wrap-around support cushion, and intuitive controls for enhanced comfort and productivity.


Model Variants

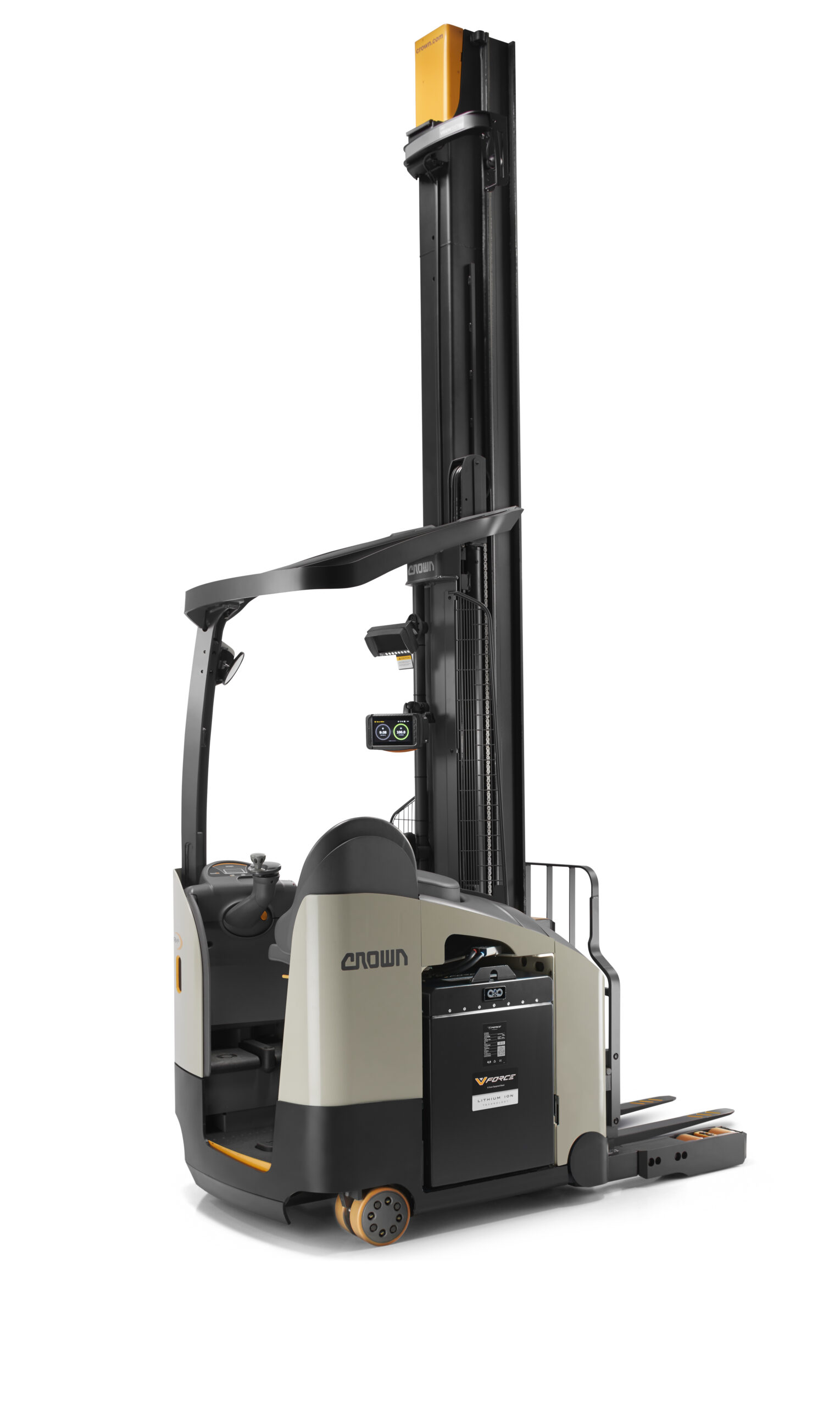

RM 6000 Series – Single Reach

  • Operator Position: Stand-up or Sit-down options available.

  • Load Capacity: Up to 4,500 lbs.

  • Head Length: 56 – 64.9 inches.

  • Max Lift Height: Up to 505 inches.

  • Applications: Ideal for narrow aisles and high stacking in warehouses and distribution centers.

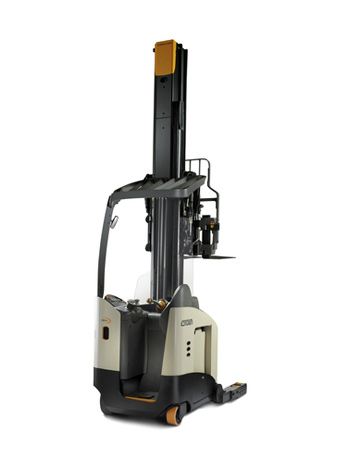

RMD 6000 Series – Double Reach

  • Operator Position: Stand-up or Sit-down options available.

  • Load Capacity: Up to 3,200 lbs.

  • Head Length: 60.9 – 70.8 inches.

  • Max Lift Height: Up to 505 inches.

  • Applications: Designed for double-deep pallet storage, maximizing storage density.


Options and Accessories

  • Rack Height Select: Programmed mast stops at preselected heights for precise load placement.

  • Tilt Position Assist: Preprogrammed fork tilt positions for optimal pallet entry and exit.

  • Capacity Monitor: Displays approximate load weight and alerts when capacity is exceeded.

  • Camera and Color Monitor: Enhances visibility at height for improved safety and accuracy.

  • Laser Fork Guide: Assists in precise fork positioning at height.

  • Quick Change Load Wheels: Patented design allows wheel replacement in 2.5 minutes, reducing downtime.

  • Work Assist Accessories: Customizable options to enhance operator productivity and comfort.


Applications

The RM/RMD Series is suited for:

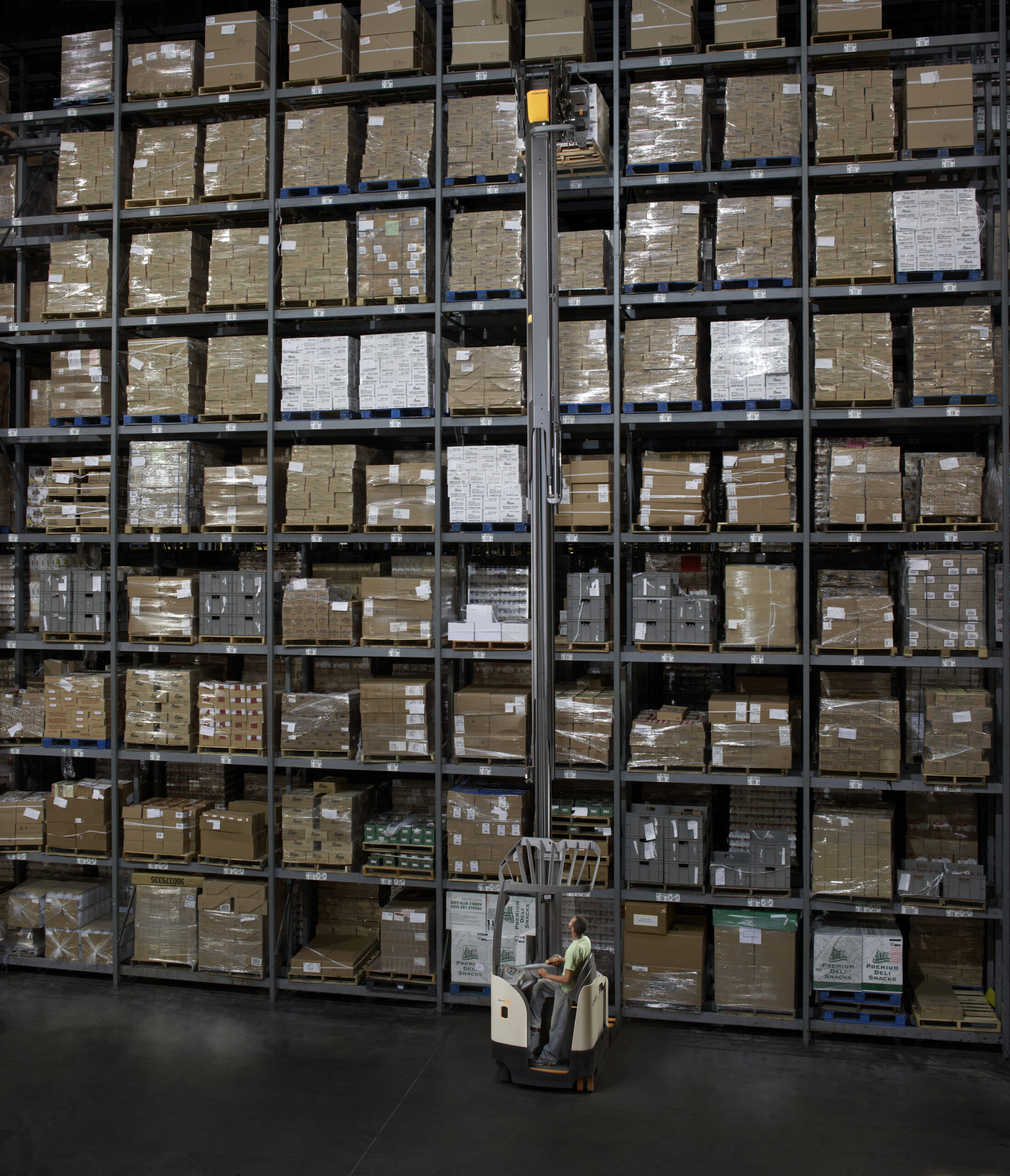

  • High-Density Warehousing: Maximizing vertical storage space in narrow aisles.

  • Cold Storage: Optional features available for freezer environments.

  • Retail and E-commerce Fulfillment: Efficient handling of diverse product sizes and weights.

  • Manufacturing Facilities: Reliable performance in demanding production environments.


Warranty

Crown backs the RM/RMD Series with a comprehensive warranty, reflecting their commitment to durability and customer satisfaction.
