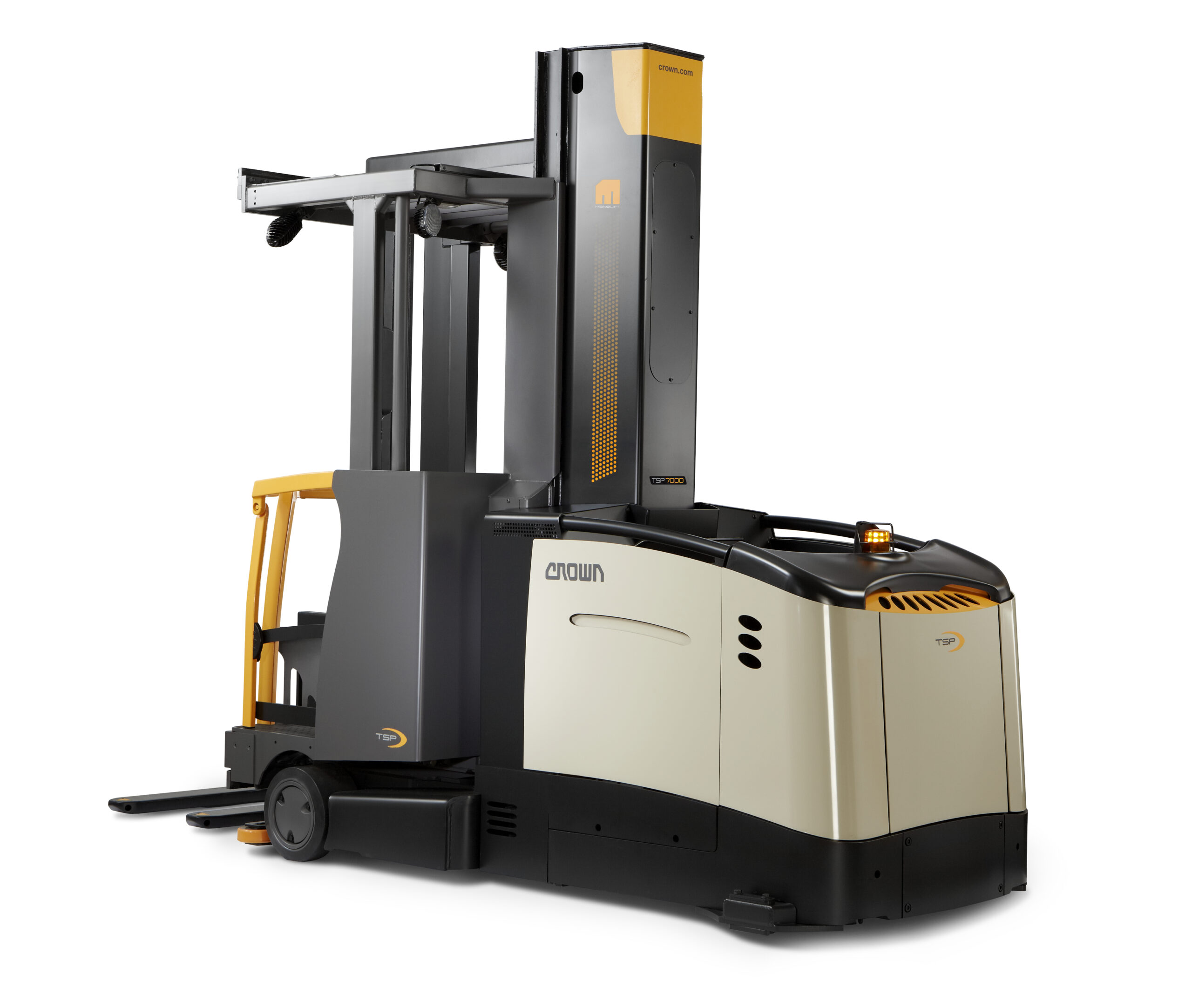

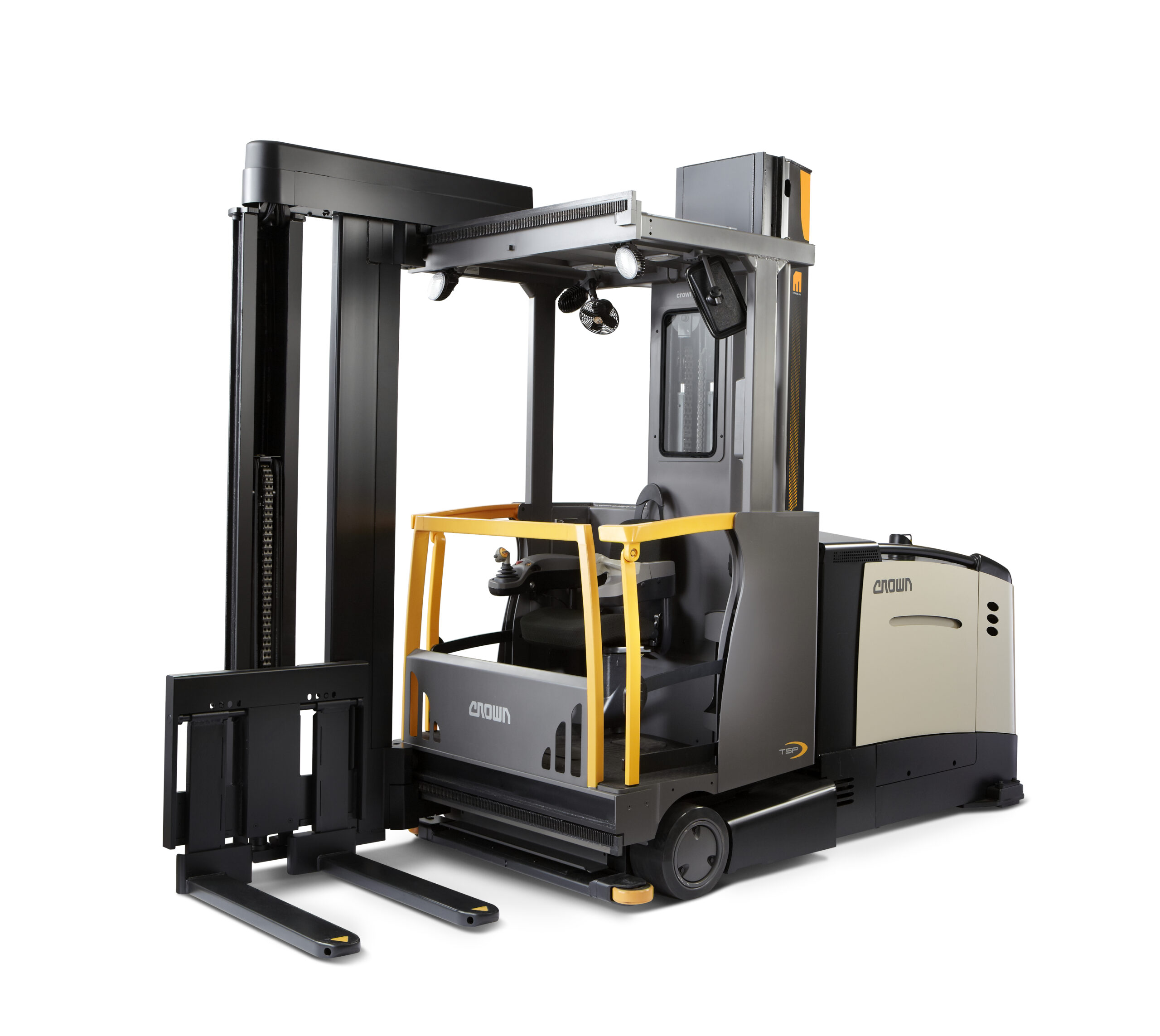

Crown TSP Series Turret Stockpicker Forklift Trucks

Maximize Throughput in Very Narrow Aisles

The Crown TSP Series Turret Stockpickers are engineered to optimize performance in very narrow aisle (VNA) applications. With exceptional lift heights, advanced operator ergonomics, and intelligent systems, the TSP Series enables efficient storage and retrieval in high-density warehouses.

Key Features

• Load Capacity: Up to 3,300 lbs

• Lift Heights: Up to 675 inches

• Power Options: 48V, 72V, or 80V electric systems

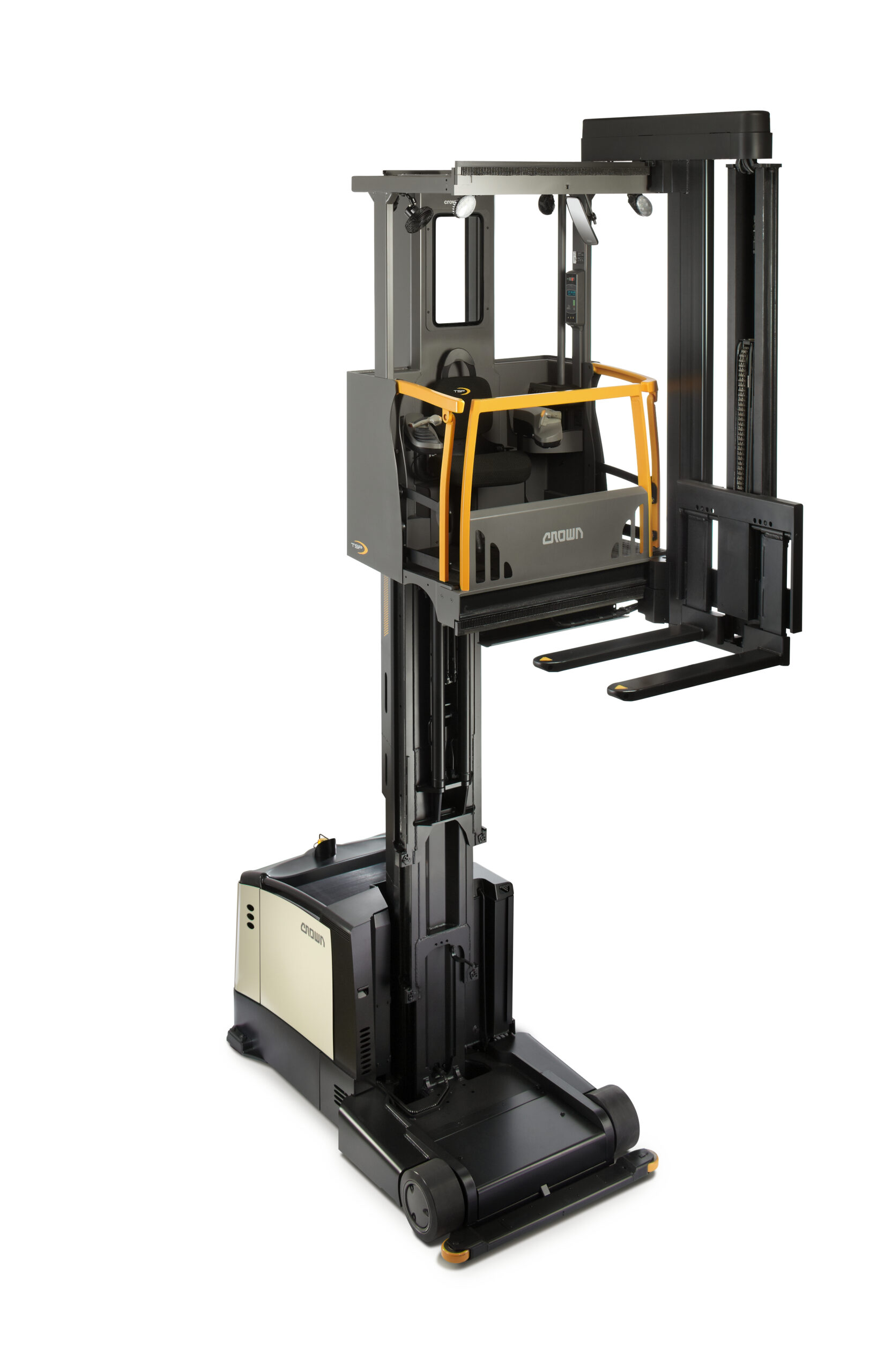

• MonoLift™ Mast: Exclusive design minimizes mast sway and twisting, ensuring stability at height

• MoveControl® Seat: Adjustable seat with integrated controls enhances operator comfort and productivity

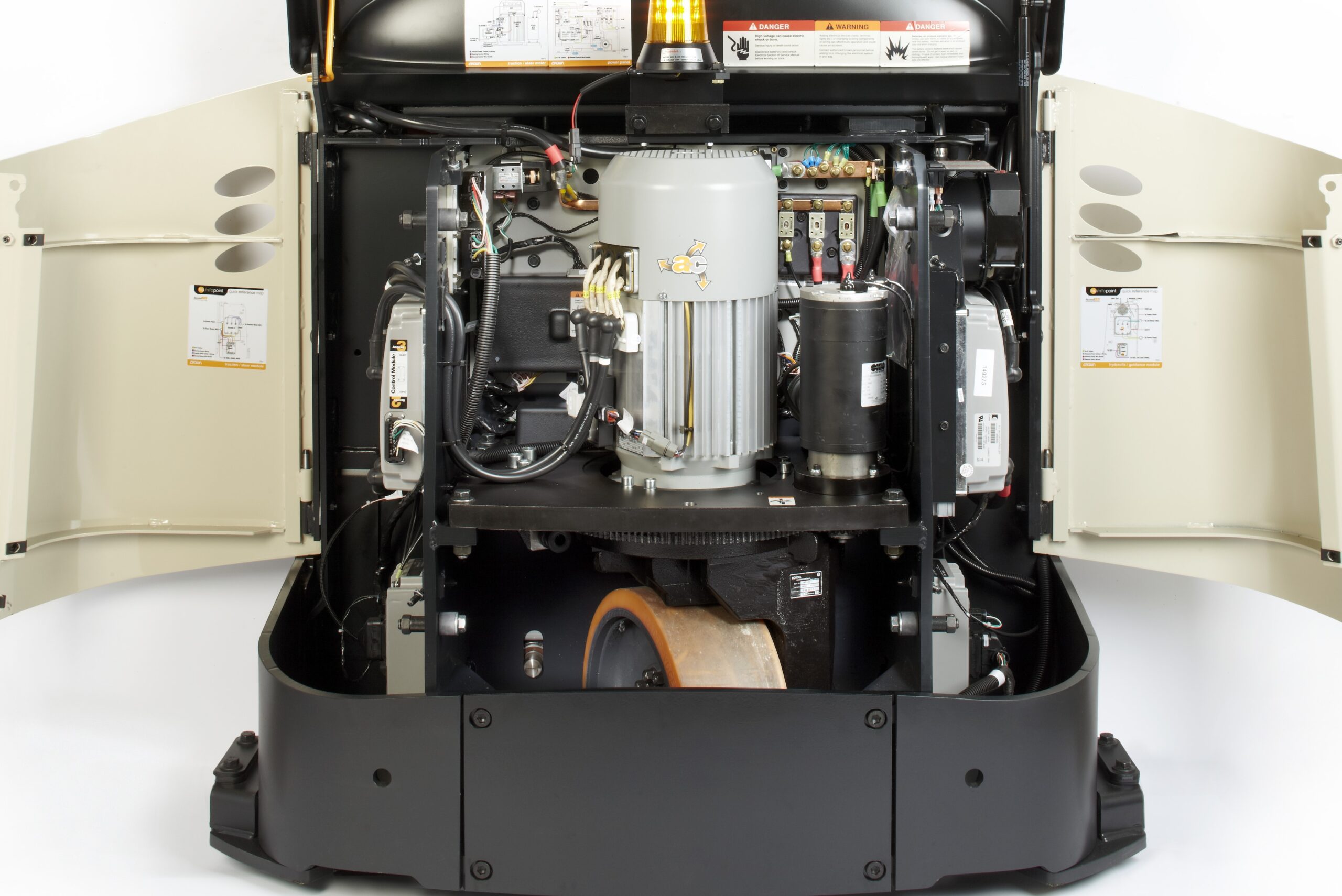

• Regenerative Lowering: Captures energy during mast descent, extending battery life

• Gena® Operating System: 7″ touch screen provides real-time data, diagnostics, and customizable widgets

• Auto Positioning System: Blends travel and lift functions to optimize route to designated rack locations

• Auto Fence: Slows or stops travel and can limit lift height within the guided very narrow aisle based on truck location

Model Variants

TSP 1000 Series

• Load Capacity: Up to 3,300 lbs

• Lift Height: Up to 531 inches

• Power: 48V electric system

• Applications: Versatile solution for full pallet handling and case picking in VNA environments

TSP 1500 Series

• Load Capacity: Up to 3,300 lbs

• Lift Height: Up to 675 inches

• Power: 72V or 80V electric systems

• Applications: Designed for high-throughput operations requiring maximum lift height and speed

Options and Accessories

• Mast Configurations:

  • TN (No Free Lift): Standard mast for applications without overhead obstructions

  • TF (Free Lift): Allows lifting of forks without increasing overall mast height

  • TT (Triple Telescopic): Provides extreme lift heights with low collapsed height, ideal for facilities with overhead constraints

• Guidance Systems:

  • Wire Guidance: Automates steering control for minimal aisle widths

  • Rail Guidance: Provides consistent steering control unaffected by power outages

• Operator Aids:

  • Capacity Data Monitor: Displays load weights, lift heights, and capacity limits at a glance

  • InfoLink® System: Fleet management system offering access control, impact detection, and real-time data

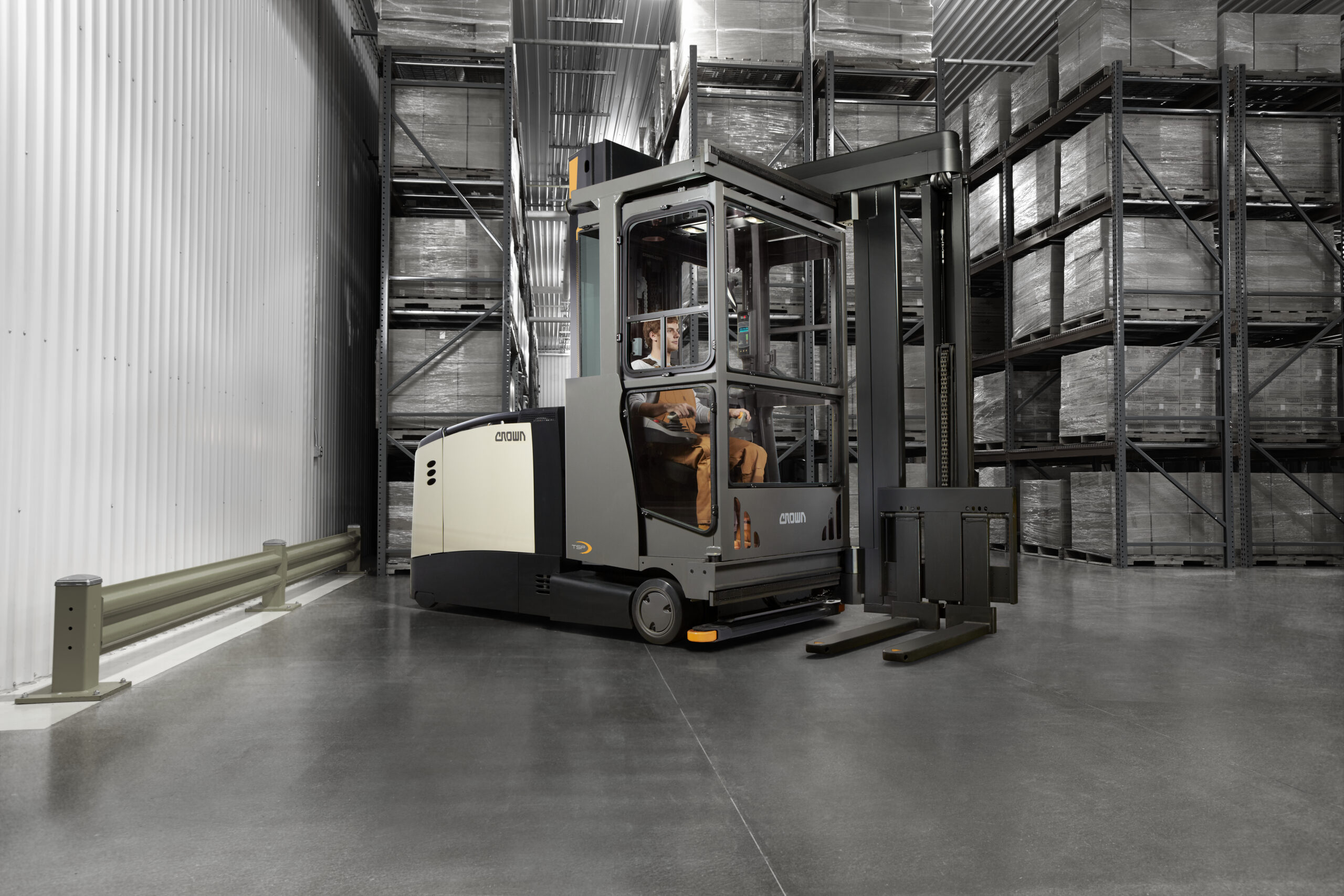

  • Freezer Cabin: Enclosed, heated cabin for comfortable operation in cold storage environments

  • Work Assist Accessories: Customizable options to enhance operator productivity and comfort

Applications

The TSP Series is ideally suited for:

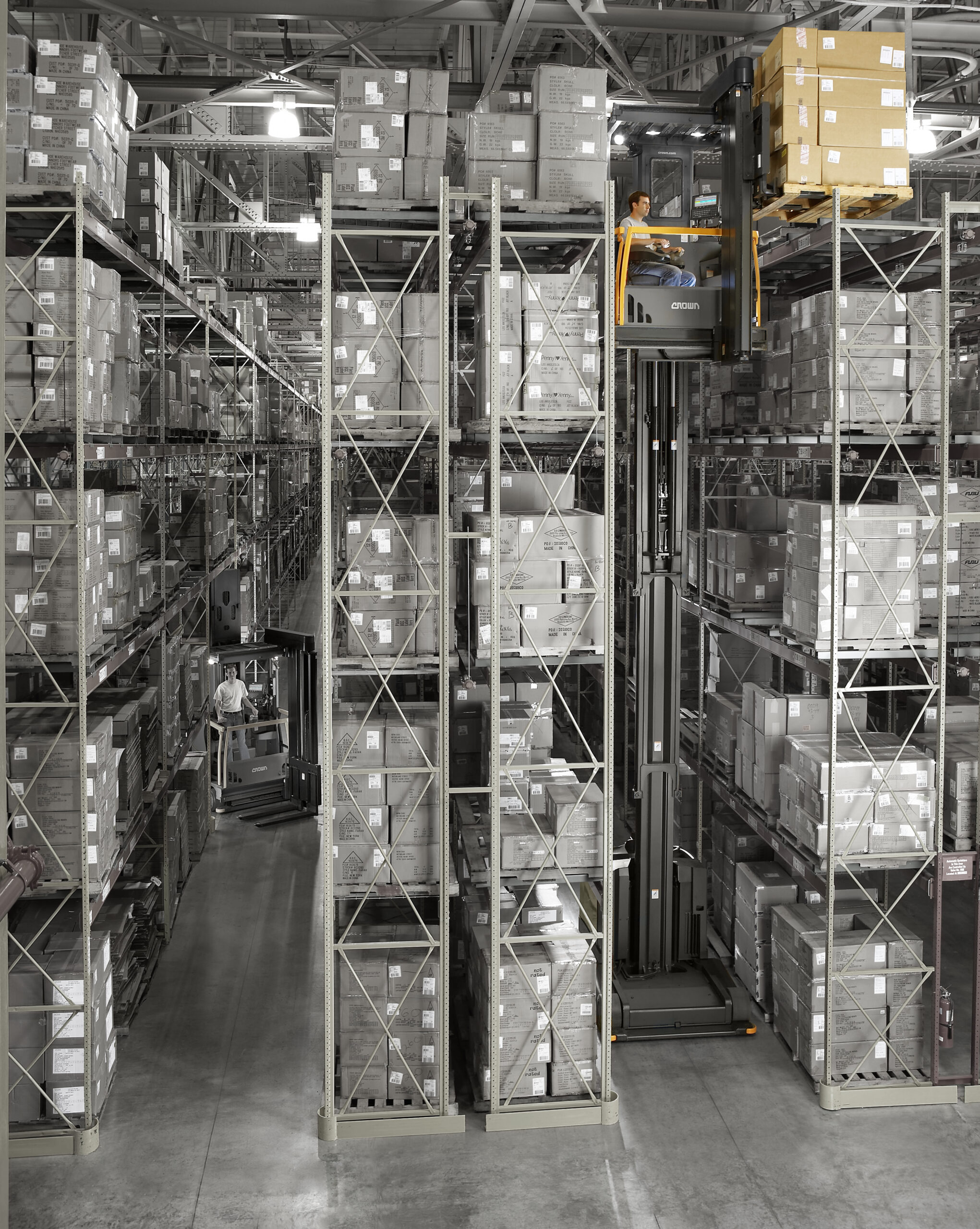

• High-Density Warehousing: Maximizing vertical storage space in very narrow aisles

• Cold Storage: Optional freezer cabin ensures reliable operation in low-temperature environments

• Retail and E-commerce Fulfillment: Efficient handling of diverse product sizes and weights

• Manufacturing Facilities: Reliable performance in demanding production environments

Warranty

Crown backs the TSP Series with a comprehensive warranty, reflecting their commitment to durability and customer satisfaction.
